BIL Definition in Transformers: Basic Impulse Insulation Level Explained
September 2, 2026 | By Chris Wang
In modern industrial power distribution systems, power transformers deliver efficient voltage transformation and energy to heavy machinery, commercial facilities, and complex grids. They are heroes. However, in the real world, transformers are easily exposed to severe hazards when facing sudden lightning strikes and switching surges. This may lead to serious electrical insulation breakdown and catastrophic equipment failure.
Helping to safeguard your equipment, the BIL (Basic Impulse Insulation Level) is introduced and implemented. This guide breaks down everything about BIL in transformers, such as definition, testing standards, manufacturing design constraints, and insulation coordination.
1. What Is BIL in Electrical Engineering?
BIL stands for Basic Impulse Insulation Level. It defines the highest standardized impulse voltage wave that a transformer insulation system can handle. So, if there is a sudden lightning strike, your transformer can withstand it without breaking down or catching a flash.
The Test Wave ($1.2/50\,\mu\text{s}$)
To test transformer BIL in the lab, there is a standard test wave called $1.2/50\,\mu\text{s}$. It means that the voltage spike shoots up to its maximum peak in just $1.2$ microseconds, and then it will drop back down to half of that peak in $50$ microseconds.
Surge Protection vs. Daily Power
You always need to clear the BIL from a transformer’s normal operating voltage. Because the continuous voltage determines your transformer’s thermal and steady-state dielectric design. BIL means the short-duration, high-amplitude insulation withstand rating for your transformer against sudden, high-energy transient spikes.
2. Why Do Transformers Face Extreme Voltage Spikes?
Transformers do not live in a gentle environment. Most of them need to face transient overvoltages.
Lightning Surges
The overhead power lines are an easy target for atmospheric electrical activity. When a fierce direct lightning strike or massive shockwaves nearby hit the lines, it brings high-voltage impulses to the grid. Without a strong defense system, the surges may destroy your transformer deadly.
Switching Surges
There is sometimes danger from inside the house, like grid operations, including heavy circuit breakers, giant capacitor banks, or the massive motor load. They may cause violent, sharp voltage swings. The switching surges can shoot up to several times higher than your normal voltage peak and cause a breakdown.
Insulation Failure
If the power spikes finally impact your transformer’s safety threshold. The damage is devastating. It may pierce solid insulation barriers, causing electrical flashovers across the bushings, and break the windings with internal short circuits. In the end, your equipment will be ruined, with costly factory downtime and operator safety hazards.
3. Industry Standards and BIL Ratings: IEEE vs. IEC
After knowing the dangers of lightning and switching surges, the next question is: how can we make the equipment tough enough to fight back?
The Global Rulebook (IEEE vs. IEC)
To make sure you handle power safely, the top engineering leaders, like IEEE/ANSI in North America and the IEC, have set the ultimate safety guidelines. Might be slightly different; the IEEE and IEC give you strict testing protocols. So you can ensure electrical equipment is reliable, trusted, and globally compatible.
Voltage Classes vs. BIL Ratings
Not a one-size-fits-all number, the BIL determines how your electrical system can handle surges. For example, a standard 15 kV distribution network usually matches a 95 kV or 110 kV BIL shield. However, a heavier 34.5 kV system needs a 150 kV or 200 kV BIL shield. That’s the difference. To make sure your transformer fits well in the electrical system, your equipment needs to work well with the switchgear and protective gear.
Low-Voltage vs. High-Voltage
If you are running everyday low-voltage equipment with 480V or 600V, then there is no need to lose sleep over extreme BIL ratings. The low voltages are gentle. But for medium- and high-voltage transformers (10 kV and beyond), the electrical pressure is intense. This is exactly where BIL is needed.

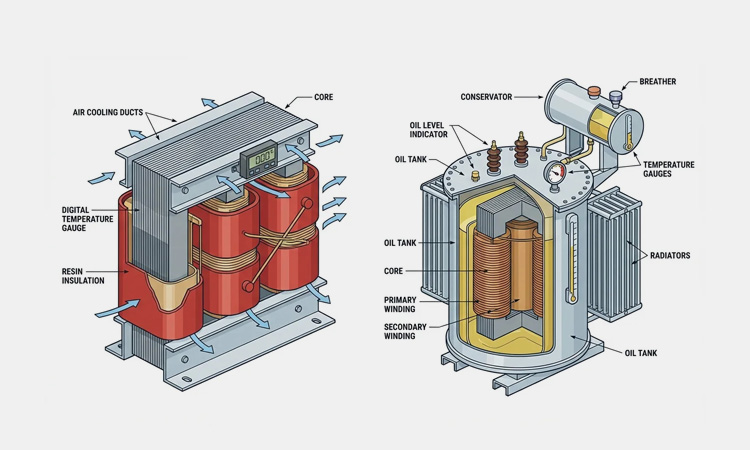

4. BIL Design: Dry-Type vs. Oil-Filled Transformers
BIL ratings for dry-type and oil-filled transformers are different. How do they beat the heat and spikes? The answer is BIL ratings. The transformers’ ability to achieve high BIL ratings depends entirely on their inner materials and cooling system.
Dry-Type Transformers (The Solid Shield)
Dry-type transformers are designed with solid insulation such as epoxy resin casting, Nomex paper, and ambient air. So they can stand firm against sudden surges.
Oil-Filled Transformers (The Liquid Superpower)
Bathed in high-grade mineral or insulating oils with cellulose paper and pressboard, the oil-filled transformer insulation system can achieve incredible dielectric strength. By packing a much higher BIL rating into a smaller, compact footprint, they have the same voltage classes as dry-type transformers.
Thermal and Dielectric Realities
Both dry-type and oil-filled transformers face the same thermal and dielectric realities. Though oil-filled provides breathtaking dielectric performance, they need strict sealing and careful fire safety operation. Meanwhile, dry-type transformers ensure the best indoor and commercial safety, but the insulation system needs absolute perfection to avoid intense electrical stress.
5. Why Does Higher BIL Mean Larger Size and Higher Costs?
To make sure your facility gets maximum protection without unnecessary specs, you need to know how BIL shapes the physical transformers.
Winding Geometry & Spacing
BIL isn’t just a number on a specification sheet. It determines the actual sizes and costs of your transformers and reactors. If you need a higher BIL rating, for example, up from a standard 110 kV to a 150 kV, then internal dimensions must increase accordingly. Because the engineers need to expand the creepage distances, widen the inter-winding gaps, and increase the solid insulation thickness.
Manufacturing and Economic Impact
Due to the strict spacing rules, this may trigger a massive manufacturing domino effect. Bigger clearances require larger core space for heat dissipation. So you may need more electrical steel sheets, longer copper or aluminum windings. In the end, you also need a bigger tank to hold it all together.
The Bottom Line for Buyers
Higher BIL leads to heavier weights, larger footprints, and a higher price tag. So learn how to balance the design and ensure exact protection can help save your project budget!
6. Testing BIL: Full-Wave vs. Chopped-Wave
To make sure your transformers can stand strong for decades of continuous operation, several tests ensure proper insulation coordination and support field maintenance.
Routine Testing vs. Type Testing
Before any transformers leave the factory, they have to pass a series of Factory Acceptance Testing (FAT) exams. It proves whether the BIL rating is actually bulletproof.
Full-Wave Impulse Test
By applying a $1.2/50\,\mu\text{s}$ impulse wave at the full rated peak voltage to your transformer, the full-wave test simulates a distant lightning strike down to the transmission line. In that way, it can test the overall insulation dielectric strength, high-voltage bushings, and major winding clearances.
Chopped-Wave Impulse Test
To know how transformers react to the sudden shock, the chopped-wave impulse test can simulate a flashover occurring across an insulator and the gap. In this test, the applied voltage is intentionally “chopped” or short-circuited after reaching its peak. Creating an extreme electrical shockwave, the violent collapse forces the internal turn-to-turn insulation to prove how it handles and survives this stress.
7. Protecting BIL: Arresters and Reactors
The Transformer’s Bodyguards: Surge Arresters & Insulation Coordination
BIL proves how a transformer can survive; however, it can not fight alone. To match a transformer’s BIL with external bodyguards, you need insulation coordination. That is, surge arresters (lightning arresters).
Surge Arresters
Good surge arresters are like a lightning-fast bouncer. They clamp incoming voltage spikes down to a safe level and protect transformers. By redirecting the surge straight into the ground, transformers rest assured and will not feel the heat.
Reactors and Filters
In heavy industrial power grids with medium-voltage drives or long-cable runs, the power electronics also bring transients to destroy transformers. To integrate transformers with line reactors, output chokes, or dv/dt filters, the whole system is protected. Not only are voltage reflections mitigated, but the equipment lifespan is also extended.
8. How to Choose the Right BIL Rating for Your Transformers and Reactors?
Choosing the right BIL ratings is never just a simple technical guide. It is about securing your long-term industrial operation.
Location: How Environment Changes the Rules
If your projects are mainly targeted for a lightning-heavy region, a high-altitude site (where thinner air makes it easier for electricity to break through), or a dirty industrial zone (where pollution crusts up on the bushings), the standard specs are not enough. You need to upgrade your BIL ratings to a safer level.
Safety vs. Over-Spending
Compared with over-spending, safety comes first. But it does not mean you need blind over-specifying. Choosing a massive BIL tier you don’t actually need is a fast way to burn cash. And it will also drive up your equipment weight and footprint.
The Smart Engineer’s Balance
What you need is a great design and a good partnership with professional engineers. So you can both meet regulatory compliance, evaluate the real-world risks, and keep your project budget lean and happy!
9. Future Trends: BIL & Transformer Longevity
High-Tech Manufacturing: From Guesswork to Precision
Modern transformer manufacturing is no longer about trial and error. You can make good use of advanced finite element analysis (FEA) software. By simulating electric fields before a single wire is wound, then combine top-tier electrical steels with advanced Vacuum Pressure Impregnation (VPI) techniques. So you can build your transformers with bulletproof insulation structures and virtually zero partial discharge.
Smart Substations: Giving Transformers a “Fitbit”
Modern substations are much smarter and more intelligent than before. Instead of waiting for your transformers to break. The substation systems can apply online monitoring to keep a 24/7 eye on partial discharges and surge counts for transformers. So you can totally rest assured.
The Bottom Line: Why BIL is the Ultimate Test of Quality
BIL (Basic Impulse Insulation Level) is not just a spec on a data sheet. It is the ultimate test for your transformer performance. Respect and understand your BIL requirements; always pair your transformer with proper surge arresters, reactors, or filters. Then you can build your industrial power network that stands strong, runs safely, and lasts for decades!
Ready to engineer a bulletproof power network for your next project? Get in touch with our expert engineering team today to discuss custom BIL ratings, request detailed specification sheets, or schedule a comprehensive transformer consultation now!
Frequently Asked Questions (FAQs)
1. What does BIL stand for in transformers, and why is it important?
What is BIL?
BIL (Basic Impulse Insulation Level) is essential to prove your transformer’s ultimate shock-absorption rating. It proves the maximum voltage spike your transformer can take without breaking down.
Why does it matter?
To help transformers face voltage shocks like lightning strikes and sudden switching surges in real and harsh environments, BIL is your ultimate guarantee.
2. What is the standard waveform used to test BIL?
The standard waveform to test BIL is 1.2/50 μs.
When the voltage surge shoots up to its maximum peak in just 1.2 microseconds, it then drops back down to half of that peak in 50 microseconds.
3. How does system voltage affect the required BIL rating?
BIL ratings scale up proportionally with your system’s voltage class. The higher your system’s operating voltage, the tougher your transformer’s armor needs to be.
4. What is the difference between dry-type and oil-filled transformers regarding BIL?
Using a powerful combo of mineral oil and paper, the oil-filled transformers pack incredible dielectric strength and keeps a surprisingly compact footprint.
Relying on solid insulation (like epoxy resin) and ambient air, the dry-type transformers can hit the exact same BIL defense levels but requires larger physical clearances.
5. Why does a higher BIL rating increase transformer size and cost?
Why does a higher BIL make a transformer bigger and heavier?
Because to handle higher voltage stress, the gaps between windings and insulation barriers are wider. Then your transformer needs more serious room to keep creepage distances.
6. Can BIL protect a transformer from continuous overvoltages?
No. BIL only protects your transformer to survive short, brutal, microsecond-long voltage shocks.
For continuous, long-term overvoltage, you need to rely on reactors and filters. BIL rating can’t save you from a slow burn!
7. How do surge arresters work together with BIL?
As the transformer’s frontline bodyguards, surge arresters clamp the voltage down and safely dump the shockwave straight into the ground when facing violent voltage spike attacks on the grid.
