VFD Harmonic Filters for Clean Power & System Reliability
- THDi < 5% at Full Load (Ultra-Low Distortion)
- 100% IEEE 519 Compliant (Grid Protection)
- True Power Factor > 95% (Energy Efficiency)
- Generator-Compatible (Low kVAR Design)
Our Standards
Engineered Excellence: VFD Harmonic Filters
- THDi < 5% Distortion Suppression: Cleans up power distribution.
- Guaranteed IEEE 519 Compliance: Prevents utility penalties.
- Complete Equipment Protection: Extends VFD capacitor lifespan by up to 3 times.
- Power Factor > 95%: Lowers kVA demand and heat losses.
- Generator Compatible & Flexible: Low-kVAR design.
Advanced Harmonic Mitigation
VFD is easy to bring unseen electrical pollution into your power system and lead to penalties. To protect your facility’s power grid, our VFD harmonic filter can actively smooth out raw drive distortion and keep harmonic current safely below 5% at full load.
Fully compliant with IEEE 519-2022 and IEC 61000, the filters optimize your true power factor above 95% and prevent wasted kVA energy costs.
In the end, you do not have to compromise your operational peace of mind and get a simple and stress-free electrical environment.
Flexible & High-Efficiency Filtering
Every industrial rhythm and power differs a lot. Engineered to adapt seamlessly to your power grids, we build our VFD harmonic filters for your own demands.
As an expert in the power management industry, we deliver both incredibly efficient passive solutions (≥98%) to clean up your standard 6-pulse VFDs and dynamic active filters to balance the complex, rapidly changing multi-drive loads.
You can rely on our intelligent low kVAR filtering solution to keep your system steady, smooth, and uninterrupted.
Rugged Harmonic Filters Protection
Sudden downtime and breaker trips, overheating transformers will drain your time and money if left untreated.
Built for continuous industrial duty, our VFD harmonic filter cools down your upstream components and triples VFD capacitors’ lifespan.

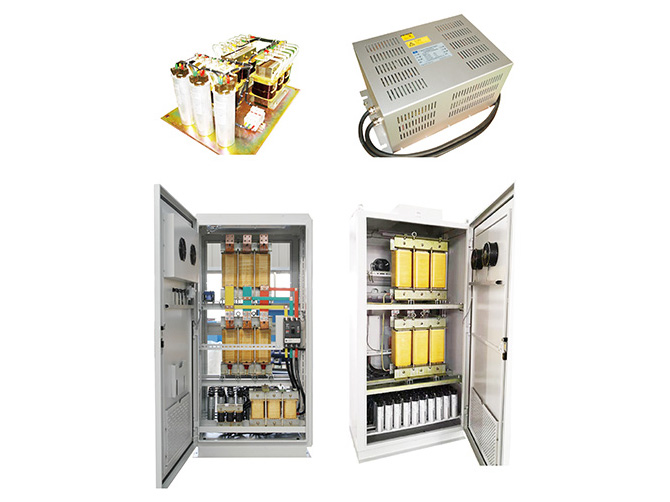

Our engineering team can tailor it precisely to your system’s exact voltage, drive power, and ambient conditions with rugged Open Panel, NEMA 1/2, or weather-proof NEMA 3R enclosures.
Safeguarding your equipment investments for years to come, they also provide you with quiet, lifetime protection even under harsh environments.
Why Engineers Choose LTECPower VFD Harmonic Filters?
Engineered to improve your power quality with reduced harmonic distortion, our VFD harmonic filters can enhance VFD-driven systems reliability.
Optimized Harmonic Reduction
With advanced harmonic mitigation, our harmonic filters help reduce harmonic currents with improved power quality and system stability.
IEEE 519 Compliance Support
Helping control harmonic distortion, the filters can also meet your demanding power quality requirements for industrial facilities.
Multiple Filtering Solutions
Providing you with active, passive, and sine wave filtering solutions for different VFD applications, the harmonic filtering cleans up your power.
Application-Specific Engineering
We offer customized harmonic filtering solutions according to your voltage level, VFD capacity, load characteristics, and harmonic conditions.
Reliable Industrial Performance
Widely applied in manufacturing, energy, water treatment, and infrastructure applications, the harmonic filters are specially built for continuous operation.
Technical Support & OEM Capability
From system analysis to customized harmonic filter solution design, we always ensure you engineering support for complex power quality projects.
Common Applications of VFD Harmonic Filters
CNC Machines & Automated Production Lines
Supported in CNC machines, robotic systems, and automated production, our VFD harmonic filters can save your sensitive equipment from electrical losses and keep it reliable.
By minimizing overheating, nuisance tripping, and premature aging of motors, transformers, and electrical components, the harmonic filters can help reduce harmonic current distortion and improve reliability and stability.

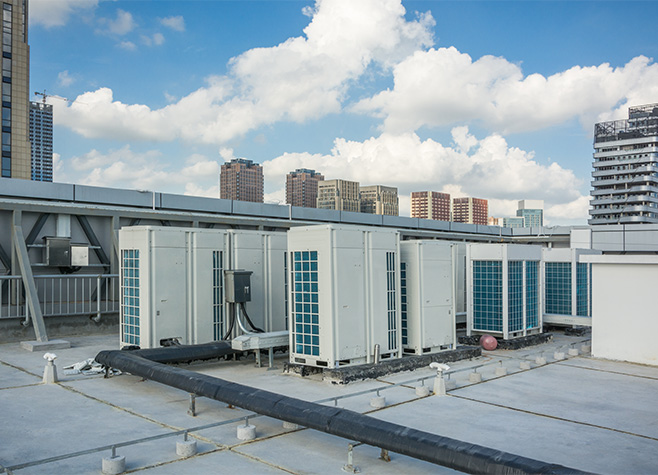

HVAC Systems: Fans, Pumps, Buildings
Nowadays, HVAC systems rely heavily on VFD for energy efficiency. However, they also bring dangerous harmonic distortion to your networks.
To maintain motor control efficiency and improve overall power quality, our VFD harmonic filters can greatly reduce harmonic stress on transformers, switchgear, and distribution systems. In the end, you can keep your commercial buildings, data centers, and industrial facilities power clean.

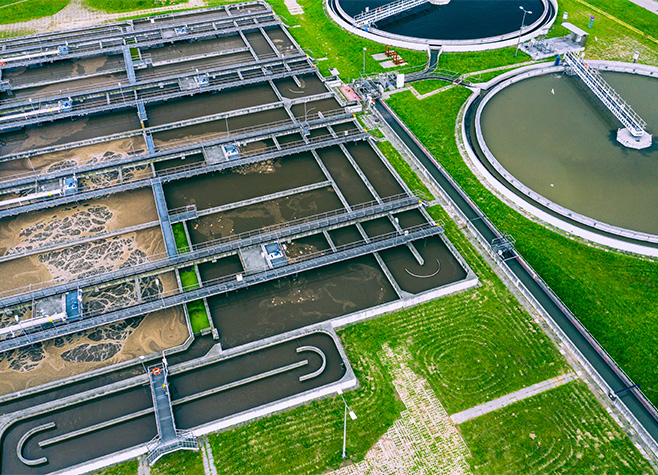

Water Treatment & Pumping Systems
To help solve complex harmonics from water treatment plants and pumping stations, the VFD harmonic filters can reduce the harmonic currents from motor drives and eliminate unexpected trips.
By reducing thermal stress on electrical components, they can keep your critical pumping equipment stable. So the filters can ensure harmonic mitigation, improved system reliability, and long-term equipment protection.
Our VFD Harmonic Filter Solutions
Offering your VFD and rapidly changing nonlinear loads dynamic harmonic compensation and real-time harmonic correction, ensures you stable power quality.

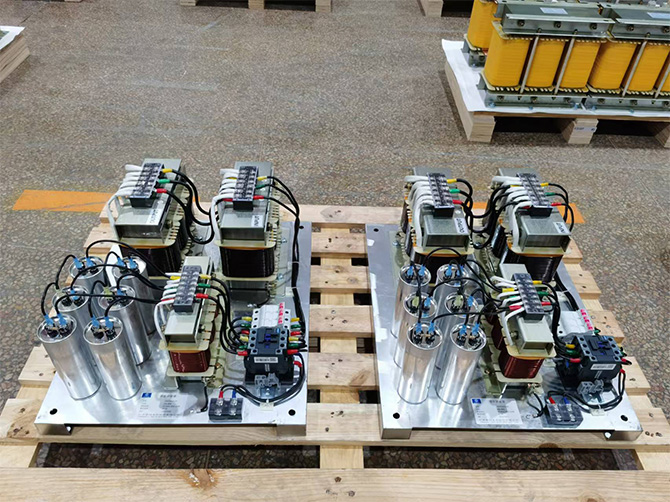

By reducing harmonic distortion, passive harmonic filters can suppress characteristic harmonics and improve system efficiency.

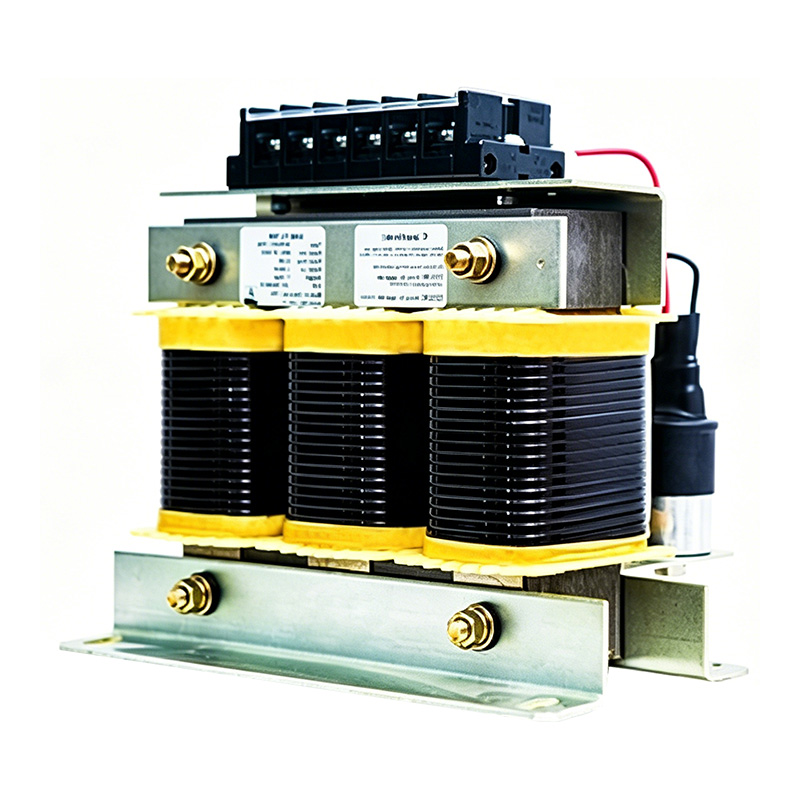

Installed between the VFD and motor, sine wave filters can smooth PWM output voltage, reduce motor insulation stress, and improve motor reliability in long cables.
VFD Harmonic Filter Technical Data
Review our core engineering metrics for low-voltage and medium-voltage filter reactors.
| Technical Parameters | Active Harmonic Filter | Passive Harmonic Filter | Sine Wave Filter |
| Installation Position | Parallel connection at PCC | Installed on VFD input side | Installed between VFD and motor |
| Main Function | Dynamic harmonic compensation | Reduce characteristic VFD harmonics | Smooth PWM output waveform |
| Harmonic Reduction | Up to 95% harmonic compensation | Typically reduces THDi to IEEE 519 compliant levels | Not designed for input harmonic reduction |
| Rated Voltage | LV / MV options available | LV / MV options available | LV voltage systems |
| Frequency Range | 50Hz / 60Hz | 50Hz / 60Hz | Motor frequency applications |
| Response Time | Real‑time dynamic compensation | Passive tuned filtering | Continuous waveform smoothing |
| Typical Load | Multiple VFDs, nonlinear loads | Pumps, fans, compressors, HVAC | Long cable motors |
| Compliance | IEEE 519, IEC standards | IEEE 519, IEC standards | IEC motor drive standards |
Inform our engineering team of your system voltage, load characteristics, harmonic levels, and application requirements; we can help you choose the right harmonic filter solutions for your VFD system.
- Active Harmonic Filters: Ideal for dynamic loads.
- Passive Harmonic Filters: Best for stable VFD applications.
They mainly differ in the way to deal with the harmonics.
- Active Harmonic Filters: By injecting corrective current to provide real-time compensation.
- Passive Harmonic Filters: Reduce specific harmonic frequencies with tuned reactors and capacitors.
Yes, absolutely.
Significantly reducing harmonic distortion, our harmonic filters support IEEE 519 compliance.
If your motors are operating with long cable distances in your power system, then we highly recommend you a sine wave filters to protect sensitive insulation and reduce voltage stress.
For harmonic sizing, you need to figure out your system:
- Motor power
- VFD quantity
- Voltage level
- Load profile
- Existing harmonic measurement
Sure, we are good at customized harmonic filter solutions. Our engineering teams can deliver customized designs based on electrical parameters, application requirements, and project specifications.
It depends on your specific filter type.
- Active filter: parallel connection
- Passive filter: VFD input side
- Sine wave filter: VFD output side
The VFD harmonic filters are widely applied in:
- Manufacturing
- Water treatment
- HVAC
- Oil & gas
- Data centers
