Real-Time SVG Power Factor Correction Systems

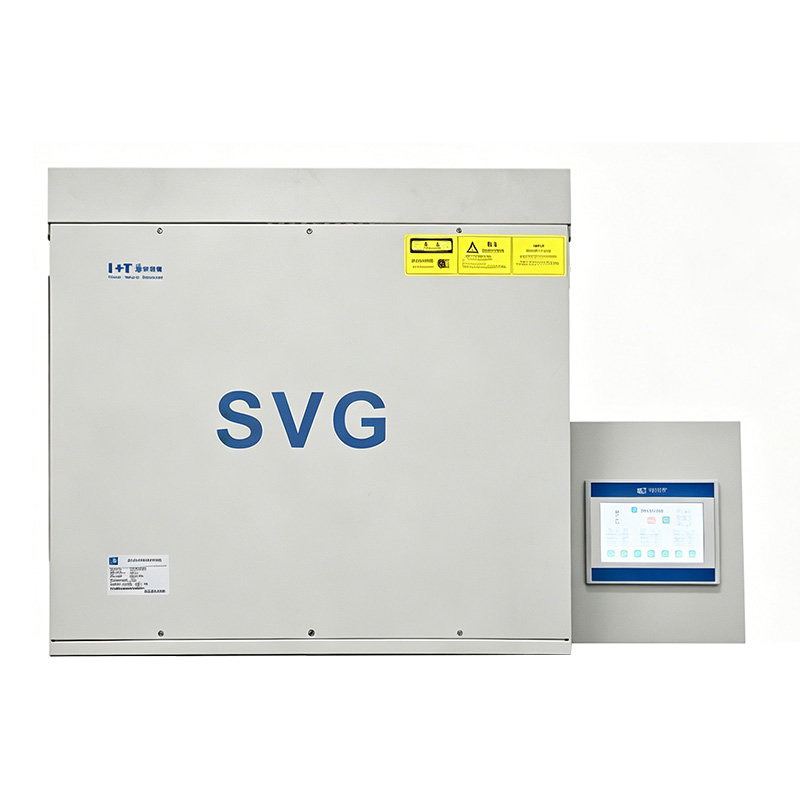

Smart Grid Efficiency: Advanced Static Var Generators (SVG)
Modern industrial loads always bring severe power quality issues. However, the capacitor banks are too slow to react. In the end, it will lead to poor power factor penalties and harmonic resonance.
Replacing mechanical switches with high-speed IGBTs, guided by smart DSP algorithms, our SVG injects precise reactive current to stabilize your grid.
0.99 Power Factor: Eliminates utility billing penalties with near-perfect compensation.

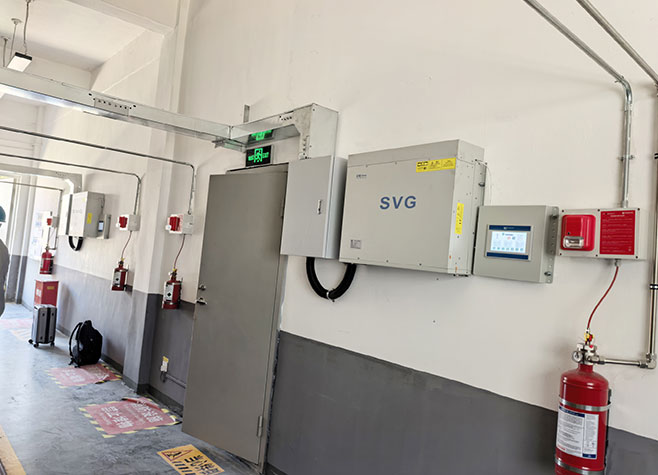

70% Space Savings: Ultra-compact solid-state design for space saving.
Resonance-Free Safety: Fully CE, UL, and IEEE 519 compliant, eliminates harmonic amplification risks for maximum runtime reliability.

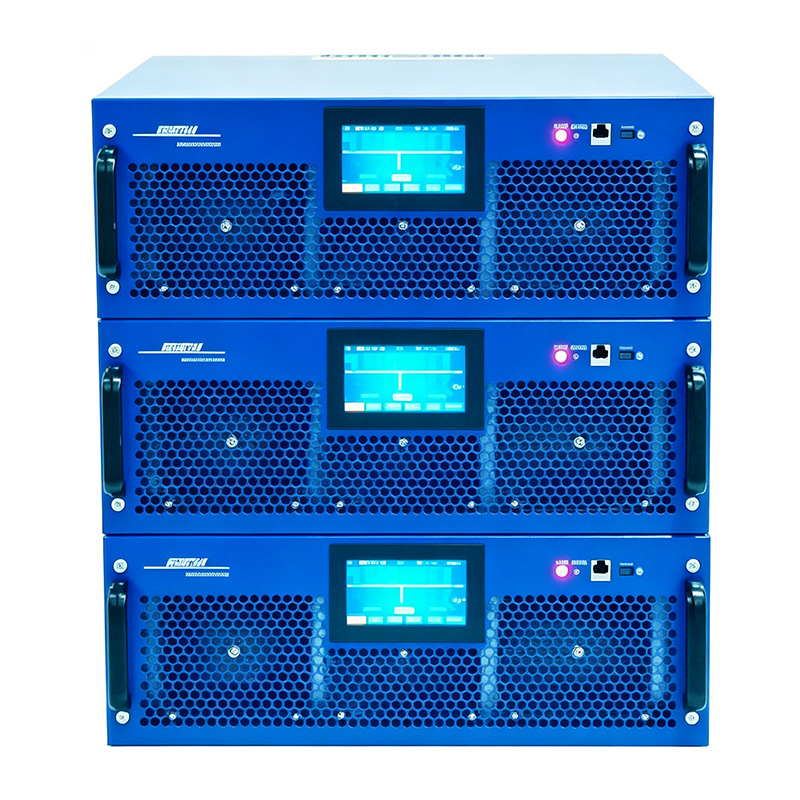

SVG — Core Technical Specifications
| Parameter | Factual Engineering Specifications |
|---|---|
| Grid Voltage Standards | 400V line-to-line (-40% to +15% continuous) |
| Frequency Adaptation | 50Hz / 60Hz auto-recognition (45Hz – 62Hz window) |
| Circuit Configuration | 3P3W or 3P4W field-configurable |
| Base Module Sizing Steps | 30, 50, 75, 100, 150, 200 kVar (per unit) |
| Dynamic Response Time | <50μs tracking, ≤10ms correction |
| Circuit Inverter Architecture | 3-level IGBT topology |
| Target Power Factor Limit | -1.0 to +1.0 stepless (PF ≥0.99) |
| Expansion Scalability | Parallel scalable, different capacities mix |
| Operational Control Loop | Dual DSP processing |
| Field Bus Networks | RS485 / Modbus RTU standard |
| Physical Containment Class | IP20 (custom enclosures available) |

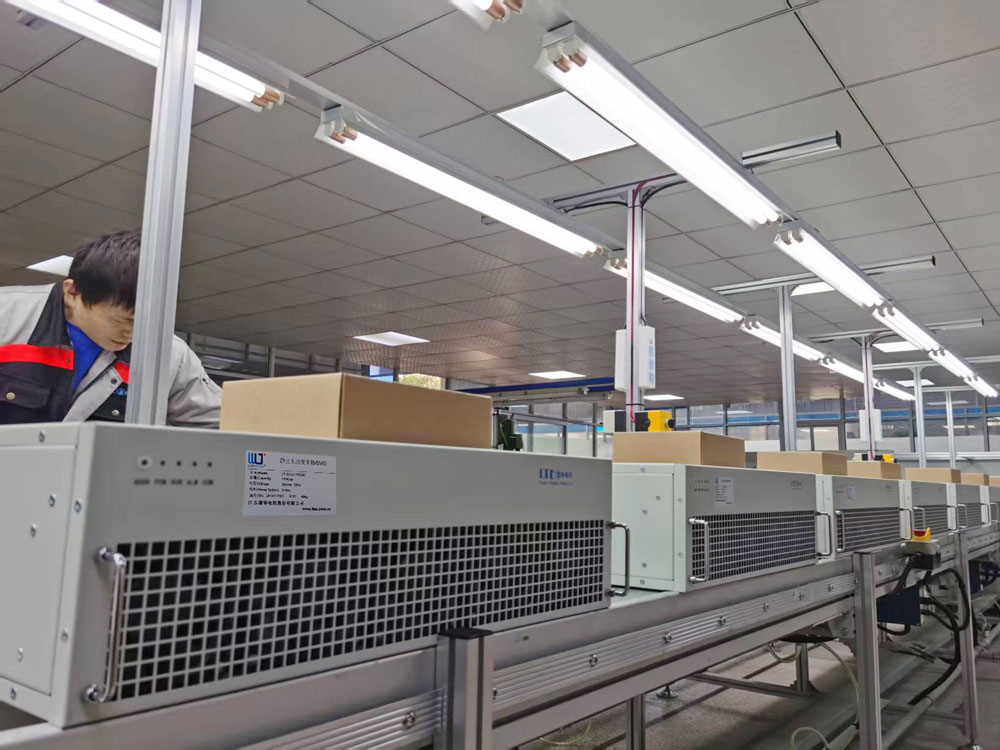

Core Engineering Advantages of LTECPower SVG
When mechanical switches are used to dump fixed-capacitor blocks, legacy setups easily create dangerous voltage spikes and severe internal heat.

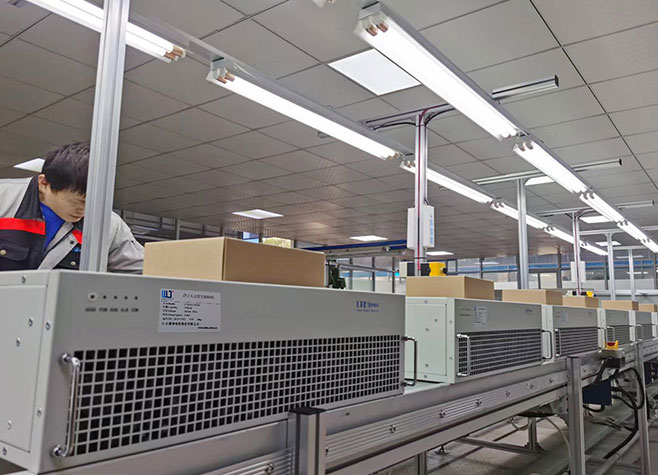

With a premium 3-level inverter layout with 12 high-power IGBTs, our SVG handles your grid with continuous micro-adjustments.
Lowering internal thermal loss with ultra-smooth waveforms, they also ensure you perfect, spike-free grid synchronization.
Capacitor banks are “one-way” systems. They only handle inductive motor loads. When modern LED arrays or long cables create capacitive over-compensation, the capacitor banks fail.
Delivering -1.0 to +1.0 seamless bi-directional adjustment, our SVG injects or absorbs reactive current based on real-time grid changes.
Safeguarding your upstream transformers from voltage damage, they also eliminates penalties for any load profile.
Amplifying high-frequency harmonics, leading to component degradation, the capacitor and reactor setups may cause hazardous oil leaks and fire risks.
By eliminating large passive LC storage loops, our SVG makes it fully immune to harmonic resonance.
Delivering a 100,000-hour life, with no need for a contactor maintenance, the SVG saves up to 70% of your plant floor space.
SVG: Technical Performance
| Sizing Parameters | Engineering Operational Details | What It Means for Your Plant |
|---|---|---|
| Multi-Capacity Parallel Mixing | Supports asymmetrical modules in parallel | Mix different capacities, scale as you grow. |
| Extreme Voltage Drops Immunity | Full current output down to -40% grid drop | Full correction, even during brownouts. |
| Elevation Power Derating | 100% up to 1000m-1500m, derate 1%/100m above | Derate above 1500m, protects high-altitude installs. |
| Operational Temperature Span | -20°C to +45°C with smart thermal monitoring | Soft-derating at high temp, no sudden shutdowns. |
SVG Applications Across Demanding Electrical Environments
From fast-cycling industrial automation profiles to highly unbalanced data center grids, our Static Var Generator (SVG) delivers you localized, millisecond-level reactive compensation where traditional capacitor banks fail.

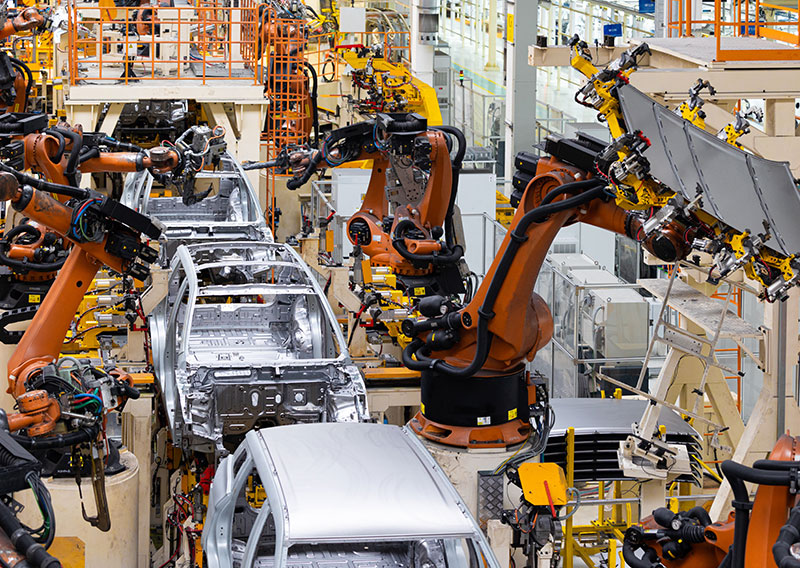

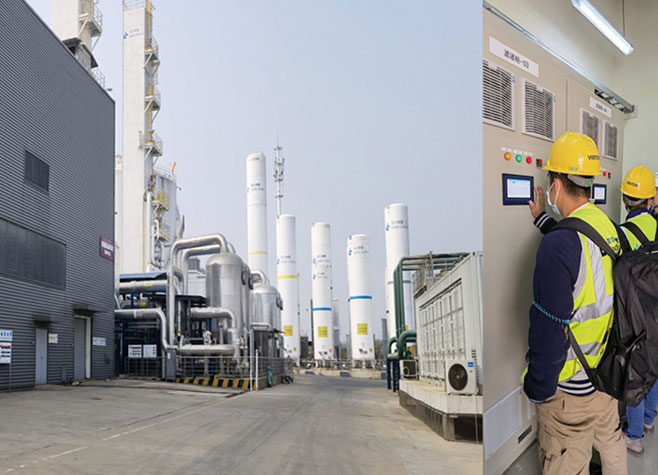

Extreme Fast-Fluctuating Industrial Automation
Fast-cycling loads like spot welders or injection molders always cause rapid voltage drops. They would corrupt nearby PLC automation data and stop production.
Reacting in 10ms, injecting instant bi-directional compensation, our SVG stabilizes voltage and secures your zero-downtime runtime reliability.
Severe Unbalanced Commercial and Institutional Grids
Unbalanced server and LED loads can easily bring severe phase instability, causing cable overheating and fire hazards. Instantly redistributing asymmetric loads and eliminating excessive neutral current, our 3P4W SVG keeps your data center safe and online, ensuring you real-time phase balancing and fire prevention.
Heavy Motor Distribution and Weak Utility Infrastructure

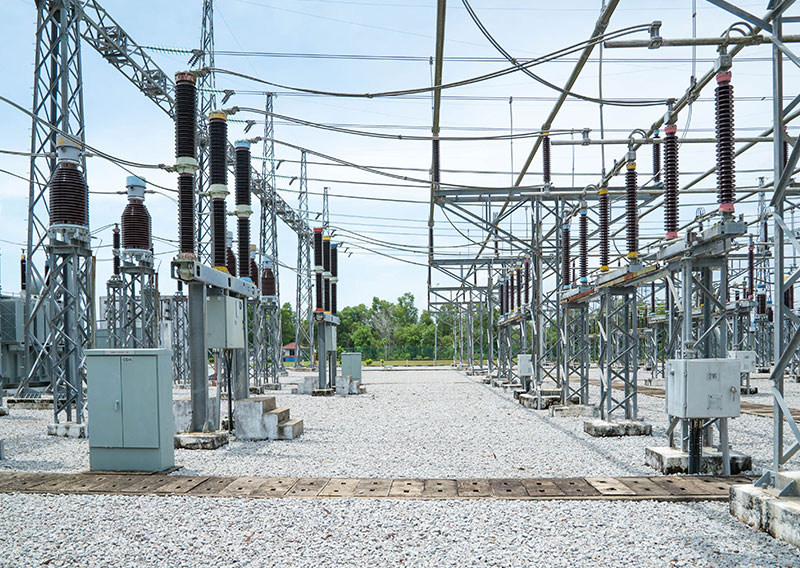

Crushing grid voltage and heavy motor startups cause the capacitor output to collapse, triggering massive utility billing penalties. Maintaining 100% full rated output even during severe -40% voltage drops, our SVG locks your facility at a 0.99 power factor to permanently eliminate financial penalties.
Adjusting in rigid, fixed steps, capacitor banks only handle peak loads. So they must be oversized. This always leads to wasted capacity and extra costs.
However, our SVG only requires 20% to 30% lower nominal capacity to hit the same power factor target. With step-less compensation, matching real-time demand perfectly, they lower your equipment purchase costs.
The standard SVG is a single-focus system. They are especially built for rapid power factor correction and phase balancing.
However, the advanced ASVG is a hybrid system. Splitting its capacity to handle power factor correction, they can also filter out 3rd to 13th order harmonics to clean your grid.
Yes. They are perfectly compatible. Our SVG can work directly with traditional capacitor groups via an Advanced Multi-Controller (AMC).
When legacy capacitor banks handle the heavy, slow-changing background loads, our SVG captures fast variations and covers all blind spots instantly.
So you can upgrade your grid to near-perfect efficiency without discarding your existing equipment.
Legacy capacitor output is tied to voltage (Q = omega C V^2). They would collapse exponentially and leave your grid unprotected under a brownout.
Acting as an active, controlled current source, our SVG boosts its internal DC voltage to fight back against grid instability.
So even during severe 40% grid voltage drops, they ensure you 100% full reactive current compensation.
Our solid-state SVG is engineered with a low-maintenance design. So your routine care is limited to a wire tightness check and air intake grilles clean every 6 to 12 months.
It significantly lowers your operating costs with a continuous, worry-free long service life.
