Sine Wave Filters for Motor Protection

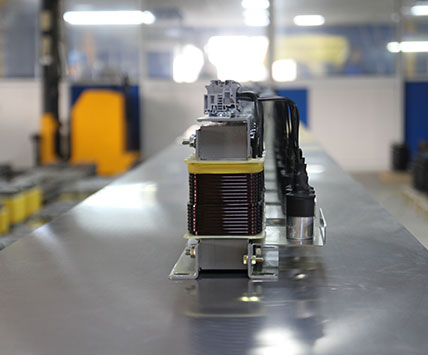

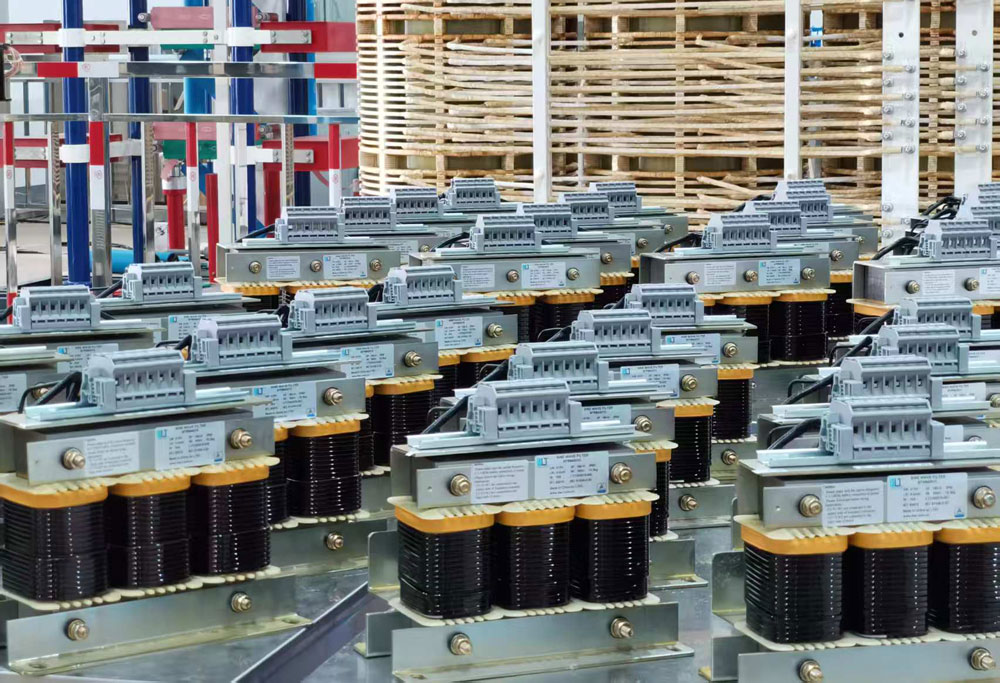

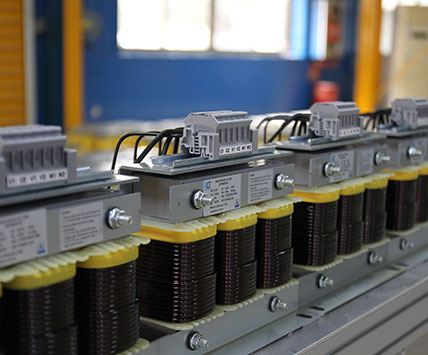

High-Performance Sine Wave Output Filters
The motor brunout from modern VFDs generates steep dv/dt voltage edges. Over long cable runs, it builds up destructive peak voltage spikes that may risk your system. In the end, your motor insulation will degrade, leading to winding hot-spots and high-frequency noise.
You need pure reconstruction. Applied directly at the VFD output, our sine wave filter suppresses high-frequency carrier distortions. Reconstructing a clean, symmetrical voltage profile, all the voltage spikes can be eliminated.
Cost Reduction: Eliminates expensive shielded cables.
Flexibility: Multiple motors run in parallel off a single drive.
Reliability: Fully IEEE/NEMA compliant, maximum runtime ensured.

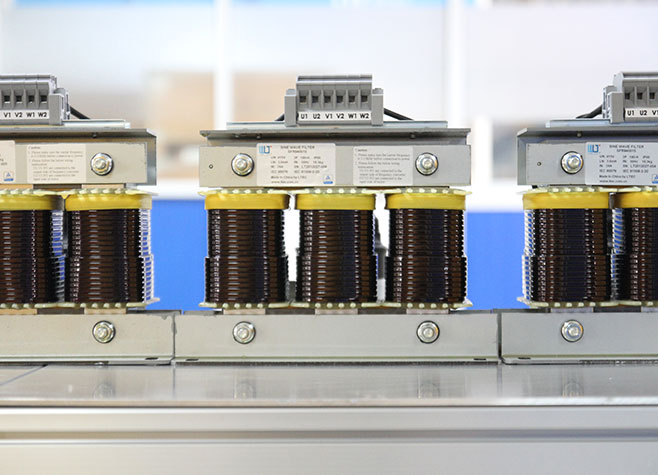

Sine Wave Filters — Core Technical Specifications

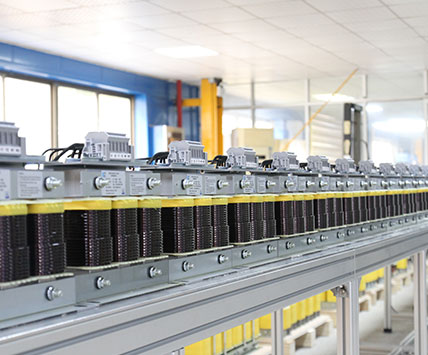

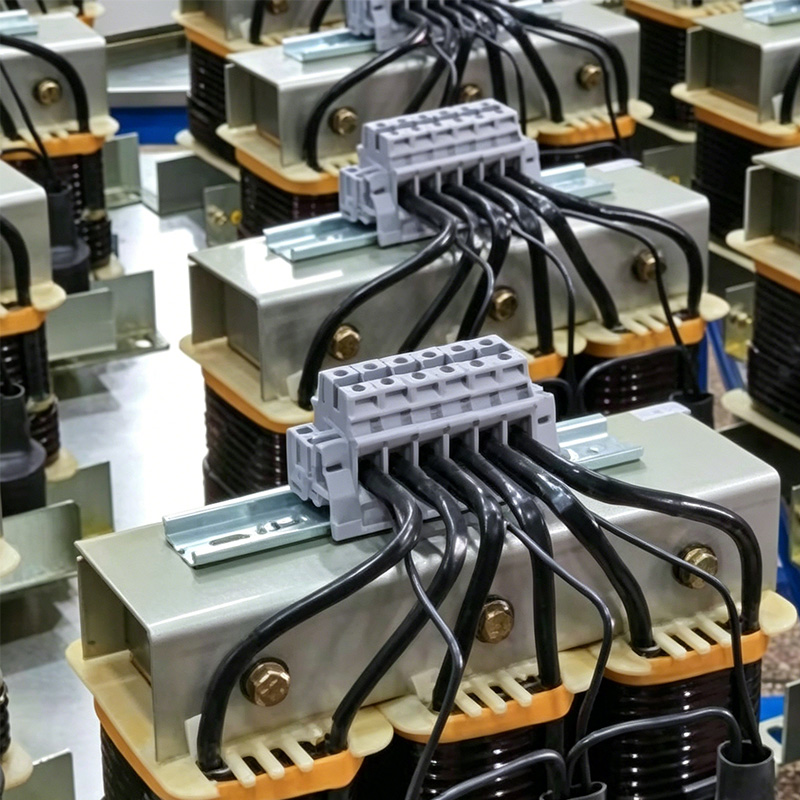

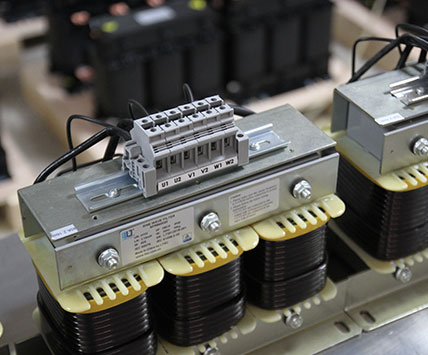

| Parameters | Factual Technical Specification |
|---|---|
| Operational Voltage Scope | 380 V to 1000 V AC (±10%) |
| Grid Frequency Settings | 50 Hz/60 Hz auto-sync |
| VFD Carrier (PWM) Bandwidth | 3 kHz to 10 kHz switching frequency |
| Dielectric Strength Proof | 50 Hz, 3 kV AC for 60s (coil-to-coil / coil-to-core) |
| Thermal Insulation Class | Class H (UL-approved VPI) |
| Core & Structure Design | Three-phase, dry-type iron core, multiple air gaps |
| Windings & Terminations | 100% copper windings, copper terminal |
| Enclosure & Environmental | IP00 (indoor mounting) |
| Operational Ambient Bounds | -25°C to +50°C |
| Maximum Humidity Envelope | ≤95% RH (non-condensing) |
| Altitude Operational Limit | ≤1000m (≤4000m optional with derating) |
Advanced Motor Protection and Long-Distance Output Solutions
To solve the problems of degraded motor dielectric insulation and severe overheating caused by VFDs, our sine wave filters reconstruct a smooth, mains-like voltage profile.

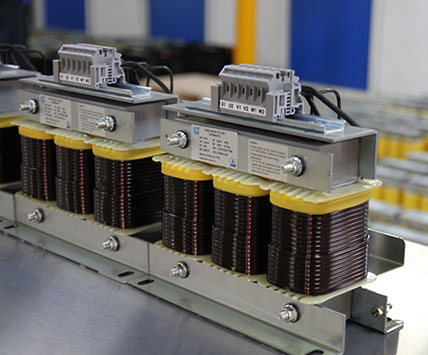

Combining heavy-duty three-phase reactors with harmonic-rated capacitors, the filter completely scrubs out raw switching frequencies.
Lowering operating temperatures, it extends your motor lifespans.
Running to deep-well pumps or conveyors, the long-distance cables easily cause reflected waves and voltage amplification, and risk your motor burnout.
Eliminating cable capacitive reflections, our sine wave filter allows your hassle-free power transmission up to 15,000 feet.
Safely swap out expensive shielded motor cables, and your costs can be drastically cut while free from drive ground faults.
High dv/dt voltages induce electrostatic shaft currents. This may cause destructive EDM micro-arcs. It will lead to surface pitting, lubrication breakdown, and mechanical seizure.
By absorbing both differential and common-mode harmonic distortions, our sine wave filters keep your bearing currents at completely safe levels.
Protecting standard motor assemblies, we guarantee your high system uptime. So you do not need expensive, insulated ceramic bearing upgradation.
Sine Wave Filters: Technical Performance
| Parameters | Technical Details | What It Means for You |
|---|---|---|
| Drive Control Mode | Scalar V/Hz only, no autotuning loops | No mismatches, no nuisance trips. |
| Carrier Frequency | Fixed PWM 3 kHz to 10 kHz, no pulse-shifting modes | Avoids resonance, stable under dynamic loads. |
| Core Gapping Technology | Multi-gap matrix vs. single large-gap | Prevents eddy current losses, protects nearby instruments. |

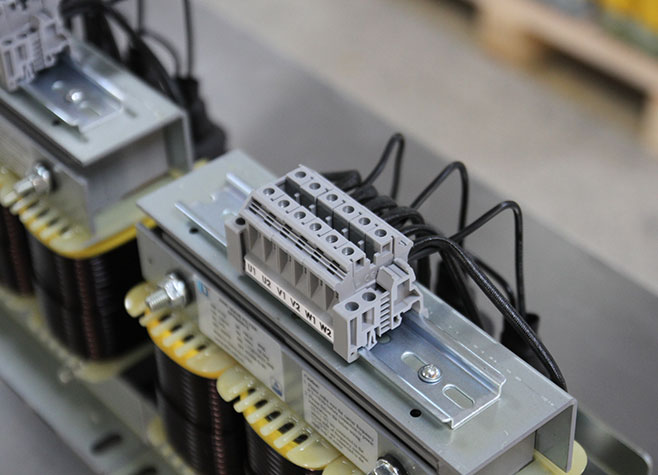

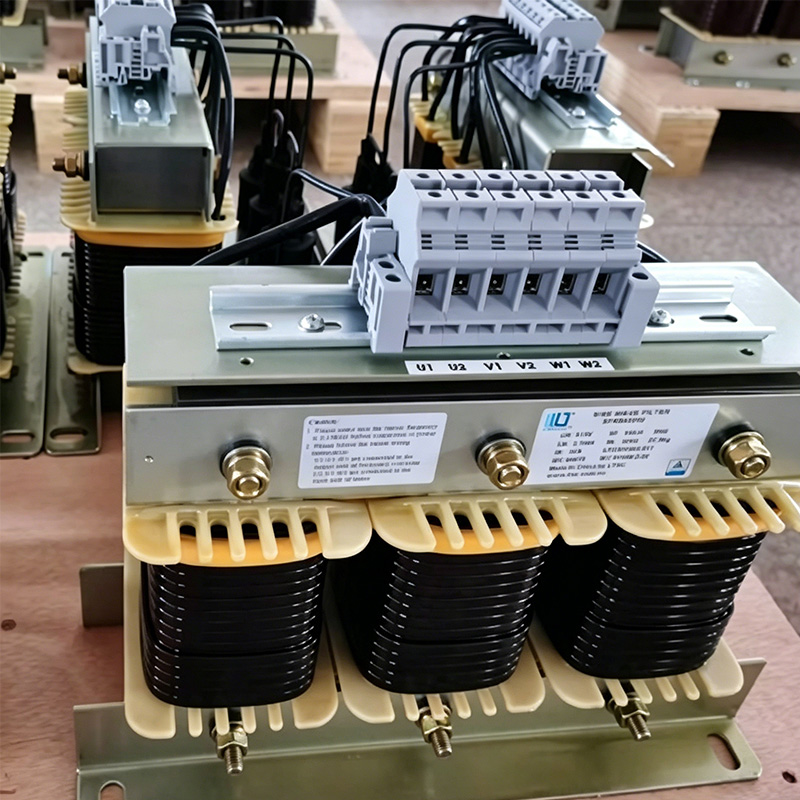

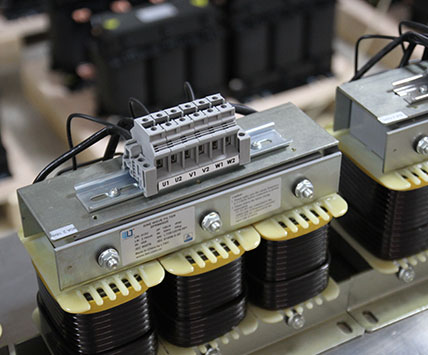

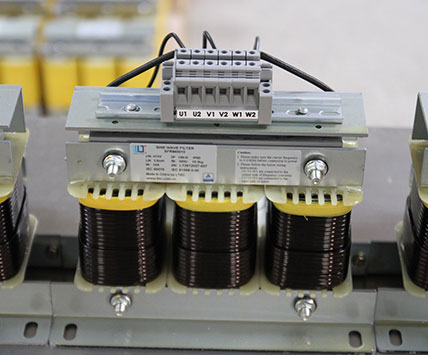

| Connection Requirements | Inputs 1U1/1V1/1W1, outputs 1U2/1V2/1W2, ≤5m leads | Prevents ring-up, protects capacitors and VFDs. |
Sine Wave Filtering Solutions Across Crucial Industrial and Commercial Applications
From heavy-duty motor setups to step-up VFD transformer systems and commercial HVAC infrastructure, our sine wave filters can deliver you ultimate protection where power quality is critical.
Heavy-Duty Long-Distance Motor Protection
Our sine wave filters are widely applied for VFDs in oilfields, mines, and water plants. They are now facing severe voltage overshoots over long cable runs.
Converting choppy PWM waves into a clean sine wave before long-distance transmission (up to 15,000 feet), our filters can eliminate voltage spikes.
In the end, your motor windings will remain protected from insulation burnout.

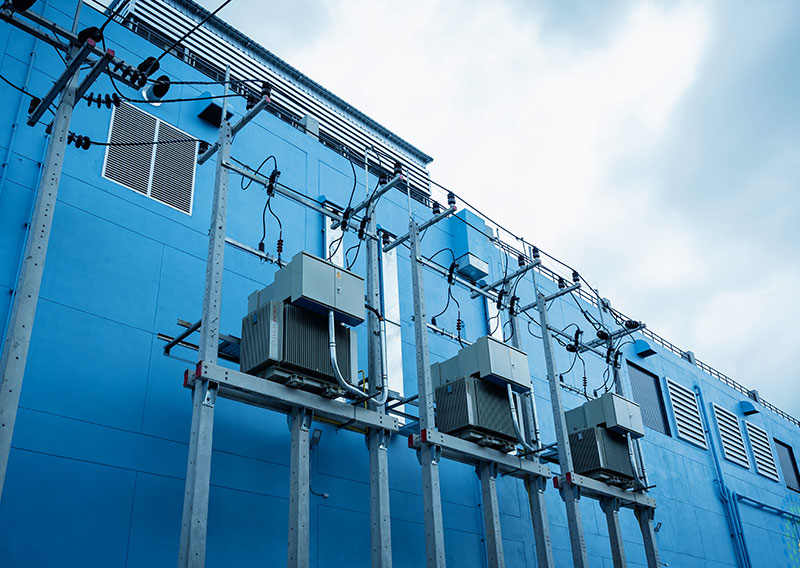

Transformer Protection: Step-Up VFD Systems
Emitting high-frequency distortions that may cause severe transformer core losses, overheating, and insulation breakdown, our sine wave filters can feed a smooth, low-ripple sinusoidal voltage.
After eliminating the transient voltage spikes, your transformers are protected from overheating with secured winding insulation.
Commercial HVAC and Blower Systems

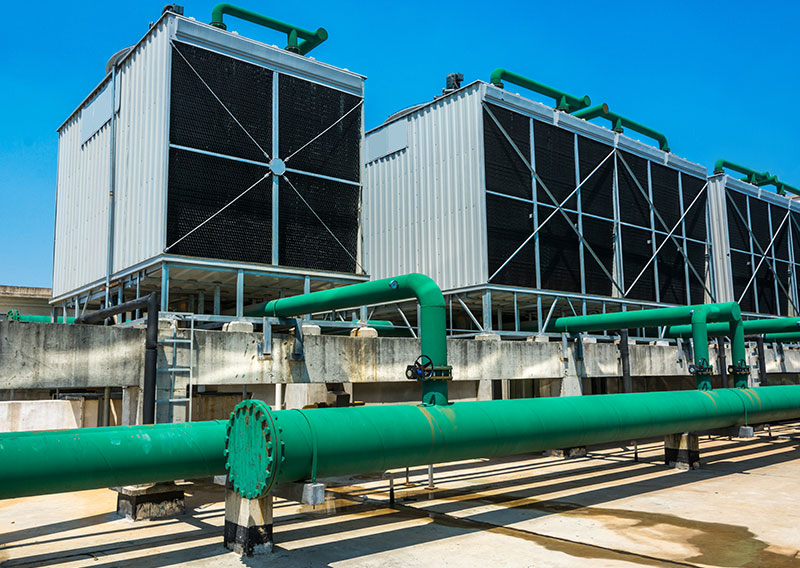

All the sharp, audible motor whistling and acoustic noise from the VFD carrier will cause you air ducts and piping.
Completely scrubbing out these dynamic high-frequency carrier components, our sine wave filter can erase the annoying motor screaming. So your commercial facilities can have a whisper-quiet environment
Using an LR network, the dv/dt filter only smooths sharp edges, and the output still remains a rough square wave.
The sine wave filter completely reshapes the square wave by using a heavy-duty LC network. So you will get a smooth, perfect sinusoidal curve.
The V/Hz control is mandatory because the filter’s heavy capacitors may cause system confusion or crashes. Distorting the motor’s feedback signals, your vector modes (FVC/SVC) may misinterpret this fake data.
The sine wave filter locks the drive into V/Hz mode.
Never do that without a connected motor.
If you test the filter on an open circuit without a motor load, it will lead to severe current imbalances and hardware overcurrent faults. In the end, the surges will rapidly overheat and destroy your filter’s internal capacitors.
So, always remember to connect a motor before your filter startup.
Raw PWM waves may cause eddy current losses and severe heating.
By delivering you a smooth sine wave, our sine wave filter lowers your transformer operating temperatures and recovers lost efficiency.
Leaving your VFD’s carrier frequency adjustment active may trigger massive current surges that instantly blow internal fuses.
So, always remember to lock the VFD carrier frequency to a fixed, approved value.
