High-Precision Detuned Reactors for Efficient Harmonic Mitigation
- Inductance Accuracy: ±3%
- Insulation Class: UL-Certified H/R Class
- Factory Test: 100% Comprehensive
Our Standards
Engineered Excellence: Detuned Reactors
- Precision Tuning: ±3%-5% (Absolute harmonic rejection).
- High Overload: For 1.8x–2.5x harmonic current (extreme industrial loads).
- Thermal Efficiency: Cool, efficient operation at 1.75x rated current.
- Compact Footprint: Saves 30% cabinet space for dense switchgear.
- Active Protection: Prevents catastrophic system failure.

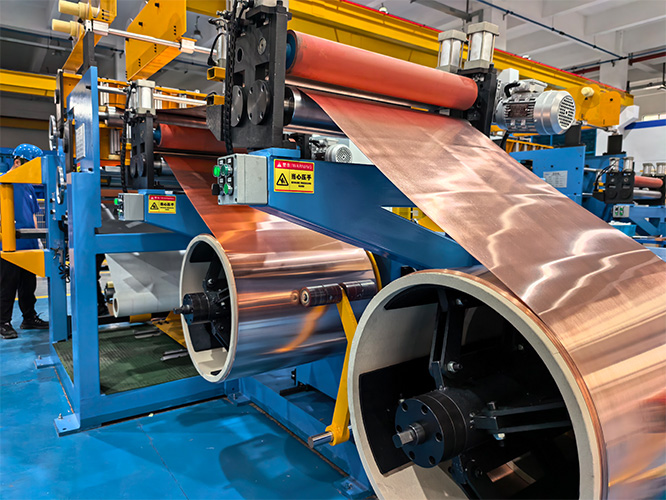

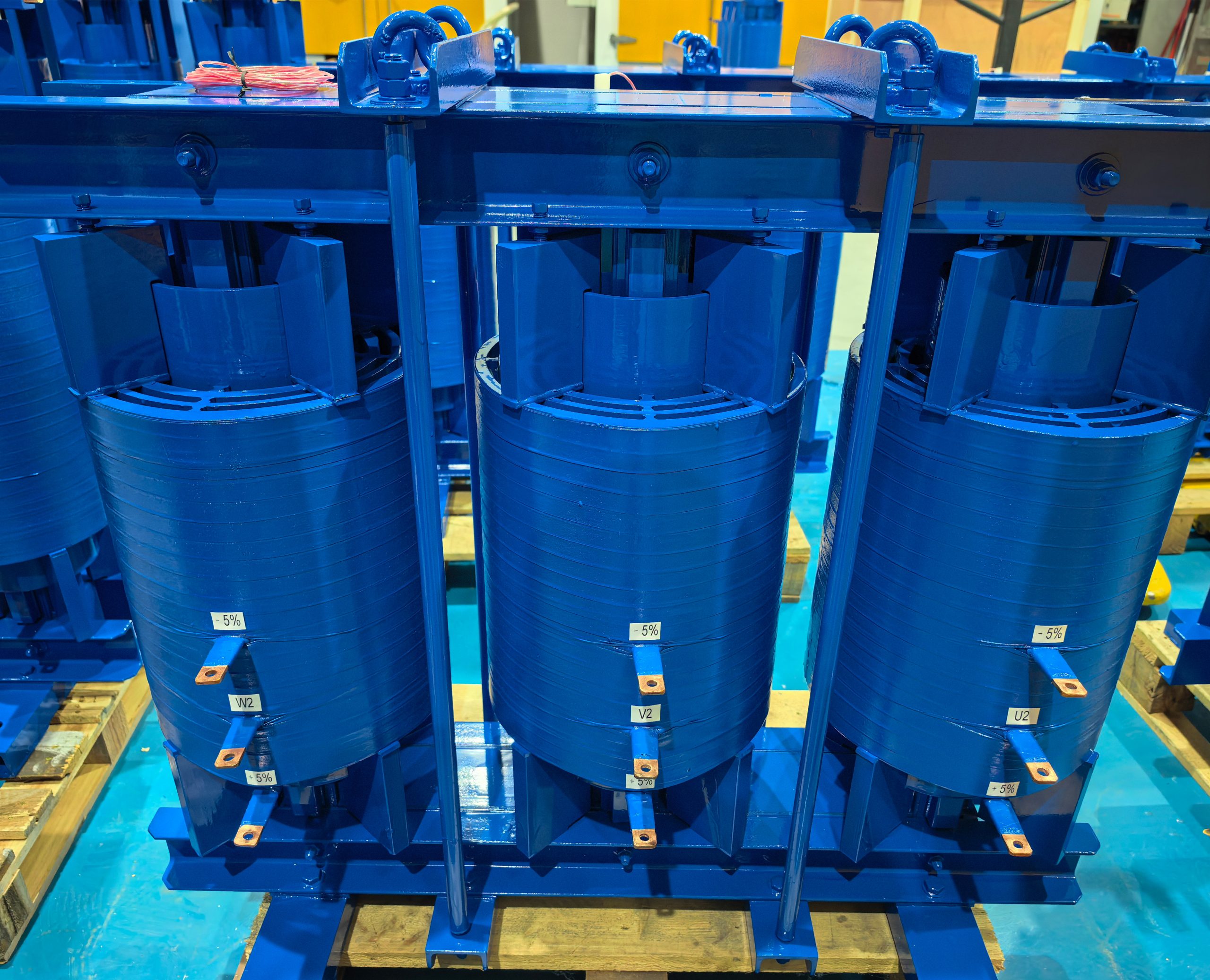

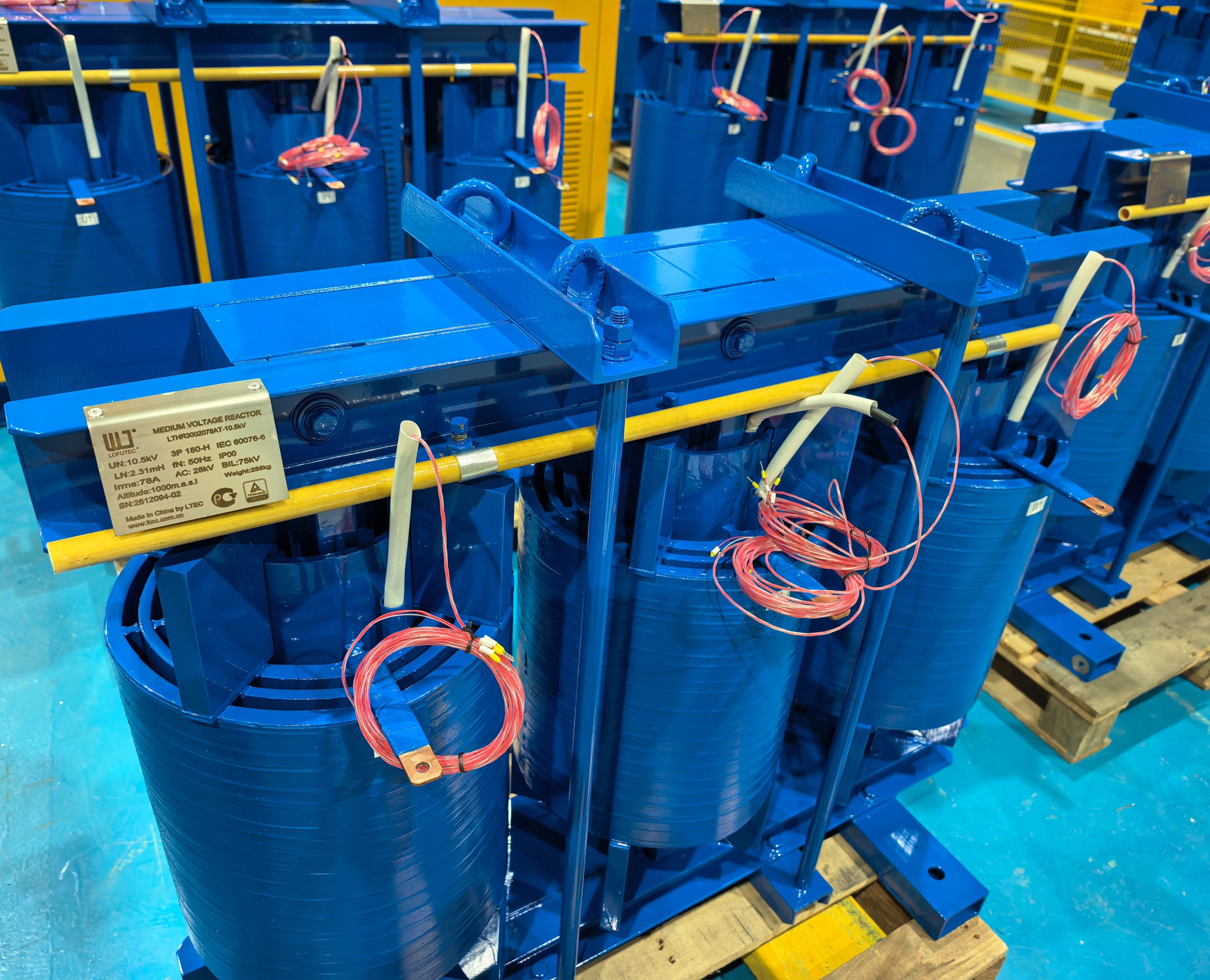

Precision Foil-Winding Technology
Superior Durability: Providing higher structural density than round wires, our foil-winding reactors can ensure you unmatched short-circuit withstand and mechanical stability.
Advanced Thermal Control: To minimize skin effect and parasitic heat, the detuned reactors deliver you stable performance even under high-frequency harmonic environments.
VPI-Sealed Longevity: Rigorous Vacuum Pressure Impregnation (VPI) ensures you a moisture-proof structure for extended operational life.
Compact & Efficient: Smaller footprint and saves you 30% cabinet space.

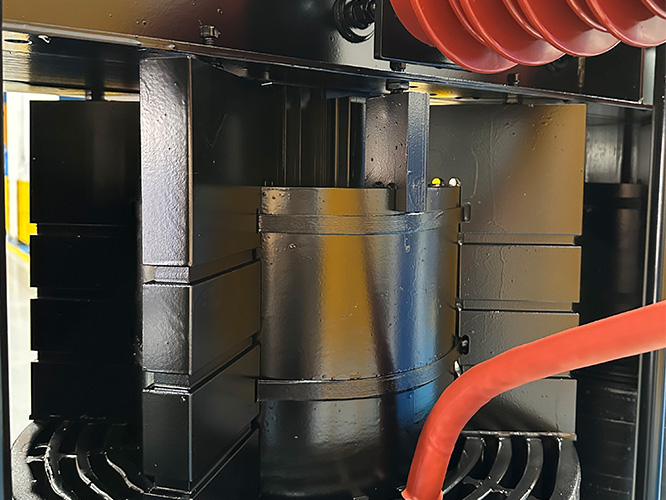

Precision-Gapped Magnetic Cores
To ensure you linear impedance even under severe harmonic loads, our detuned reactors:
Stable Linearity: Even under 175% rated current, our detuned reactors maintain >95% nominal inductance to prevent dangerous frequency migration.
Predictable Performance: Ensuring batch-to-batch impedance uniformity, the reactors can simplify system integration for OEMs.
Whisper-Quiet Operation: The laser-cut gaps can reduce acoustic noise and vibration for sensitive environments.
Grid Resilience: Delivers you operational stability across multi-step capacitor configurations.

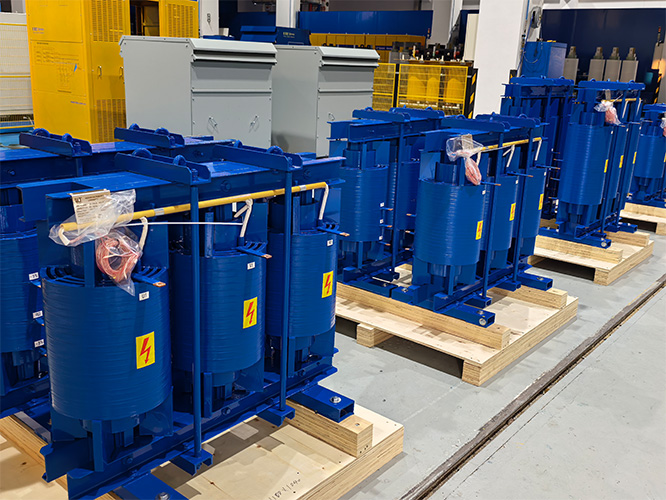

Ruggedized Safety and Thermal Reliability
Our detuned reactors can maximize your operational reliability by:
Active Fail-Safe Protection: Our thermal switches (130°C–150°C) can provide your system instant, automated overload protection without failure.

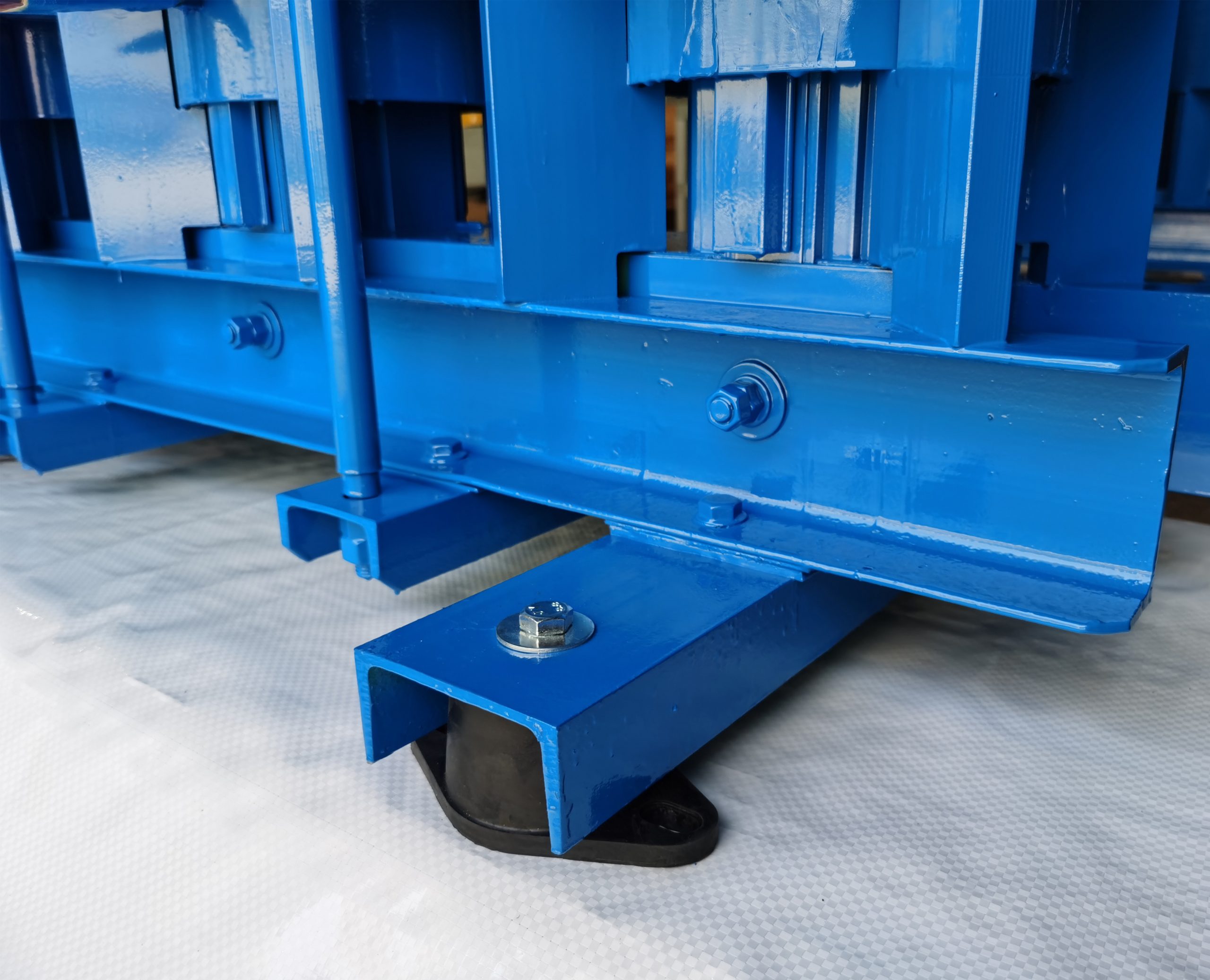

Optimized Thermal Design: The heavy-duty steel ensures your system operates coolly even in passive-cooling environments.
Climate-Proof Construction: Advanced VPI technology guarantees you reliability in harsh, corrosive conditions.
IEEE-Compliant Reliability: Fully compliant with IEEE 519-2014, our detuned reactors minimize your maintenance overhead and total cost of ownership.
Why Engineers Choose LTECPower Detuned Reactors?
Aiming to eliminate resonance and protect your sensitive equipment, our detuned reactors can maximize your capacitor bank efficiency.

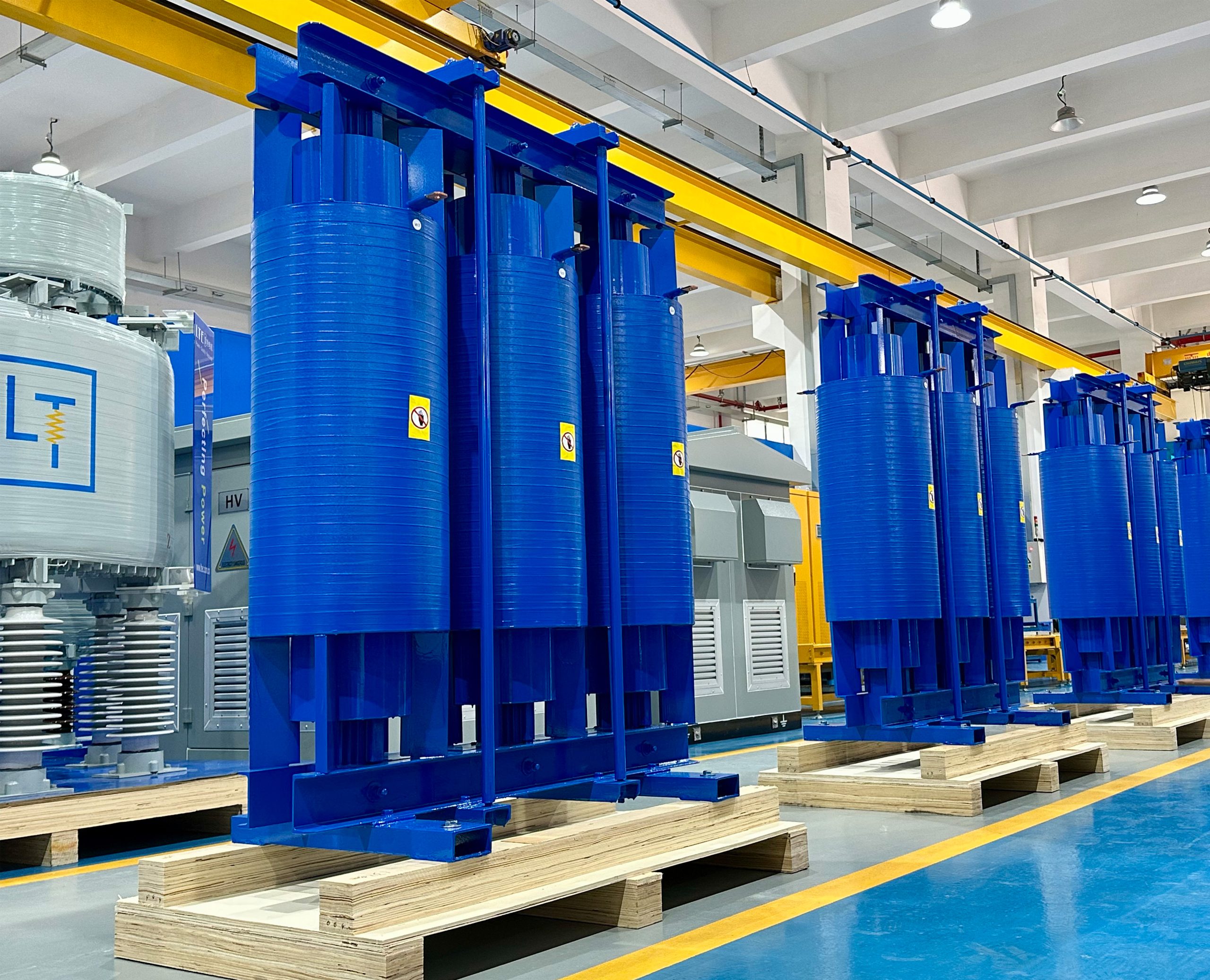

Custom Tuning
Providing standard or custom impedance (5.7%, 7%, 14%), our detuned reactors can precisely shift frequencies to prevent thermal stress and dielectric failure.
Linear Inductance
Even under loads, our reactors can maintain >95% inductance up to 175% rated current, for consistent filtering.
Class H/F Thermal Management
Perfectly dealing with high-ambient industrial heat, our superior insulation can minimize fire risks and insulation degradation.
OEM-Ready Design

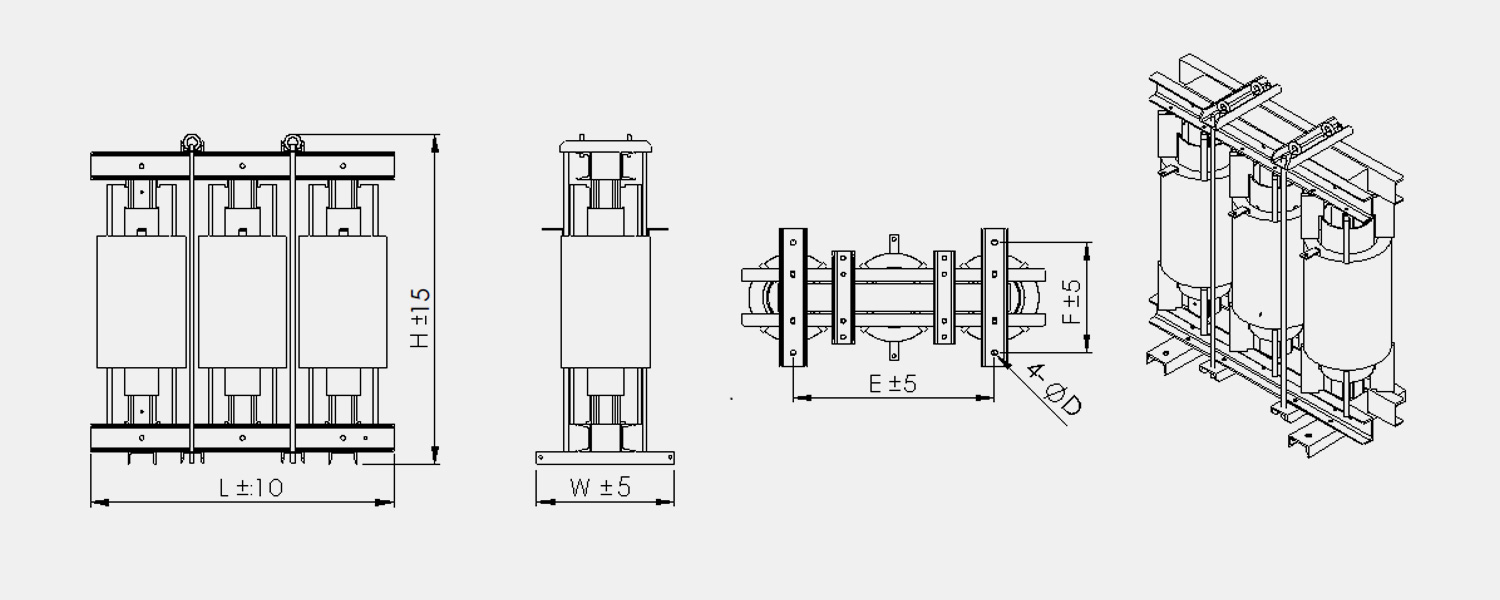

Our mounting interfaces and compact dimensions can perfectly streamline your switchgear integration to reduce your cabinet footprint.

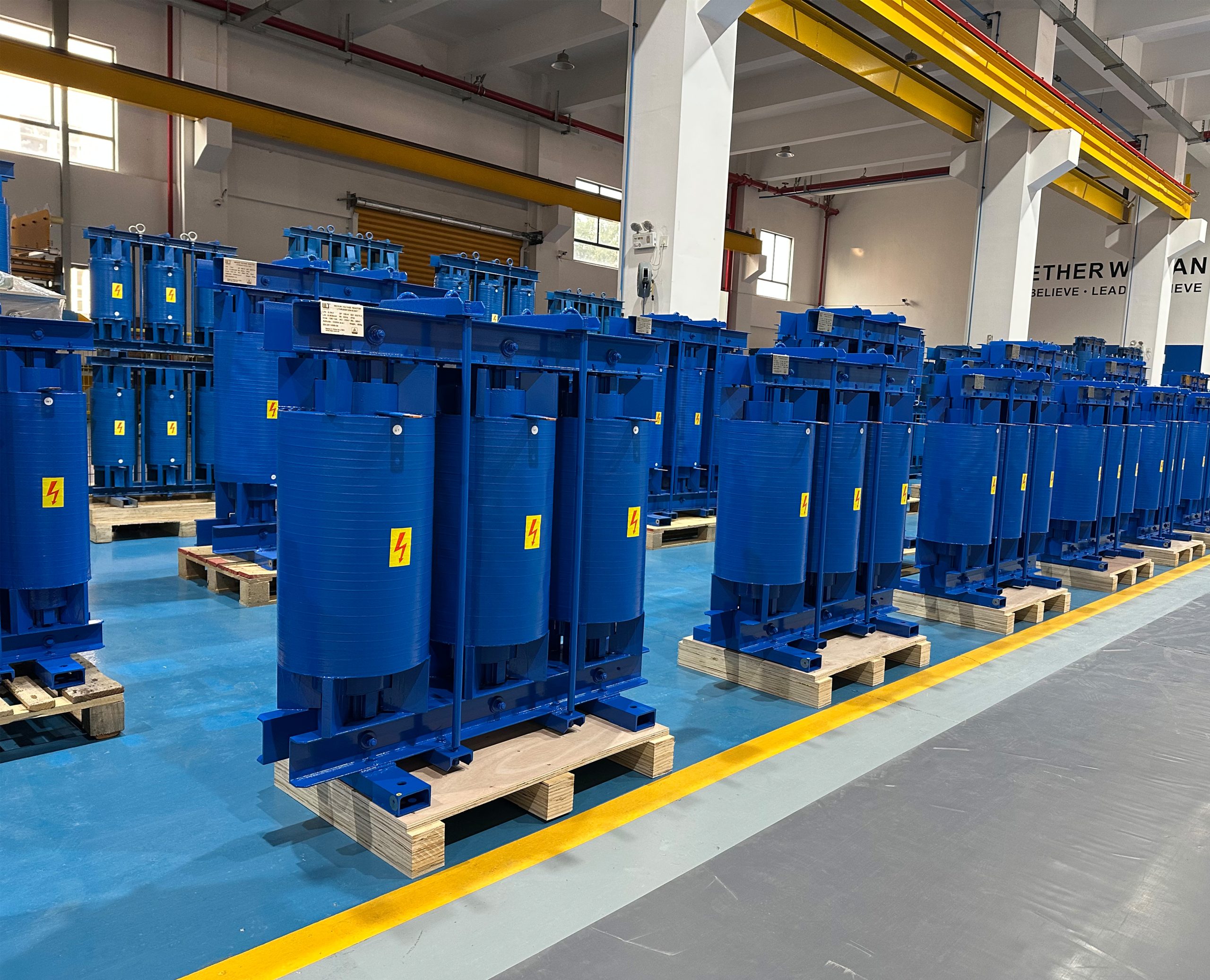

100% Factory Validation
Passed dielectric strength and linearity tests, all our reactor parts are site-ready for reliability for your complex EPC projects.
Active Fail-Safe Protection
Our thermal switches (130°C–150°C) can ensure you instant, automated overload protection to protect your core assets.
Common Applications of Detuned Reactors

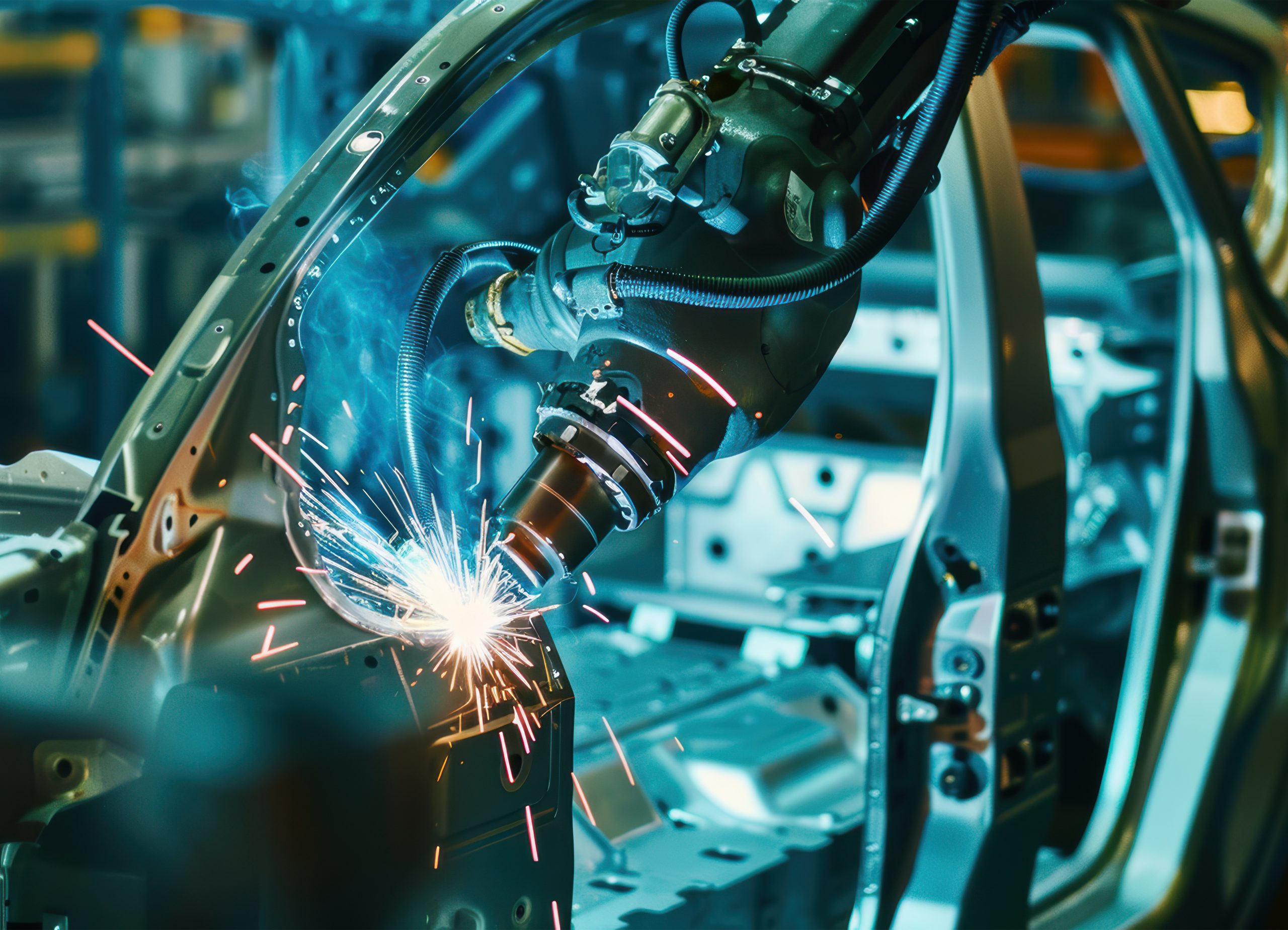

Automotive Manufacturing: Robotic and Welding Loads
The severe harmonic distortion generated by robotic arms and spot-welding systems can easily cause fuse failures, nuisance tripping, and degraded weld quality. Specifically designed for your capacitor banks, our detuned reactors help ensure stable power delivery during rapid load fluctuations.
Consistent Weld Quality: Stable arc performance for precision spot-welding.
Reduced Downtime: No nuisance tripping and no harm for your sensitive CNC/motion control infrastructure.
Extended Equipment Life: Thermal overload in capacitor banks prevention.

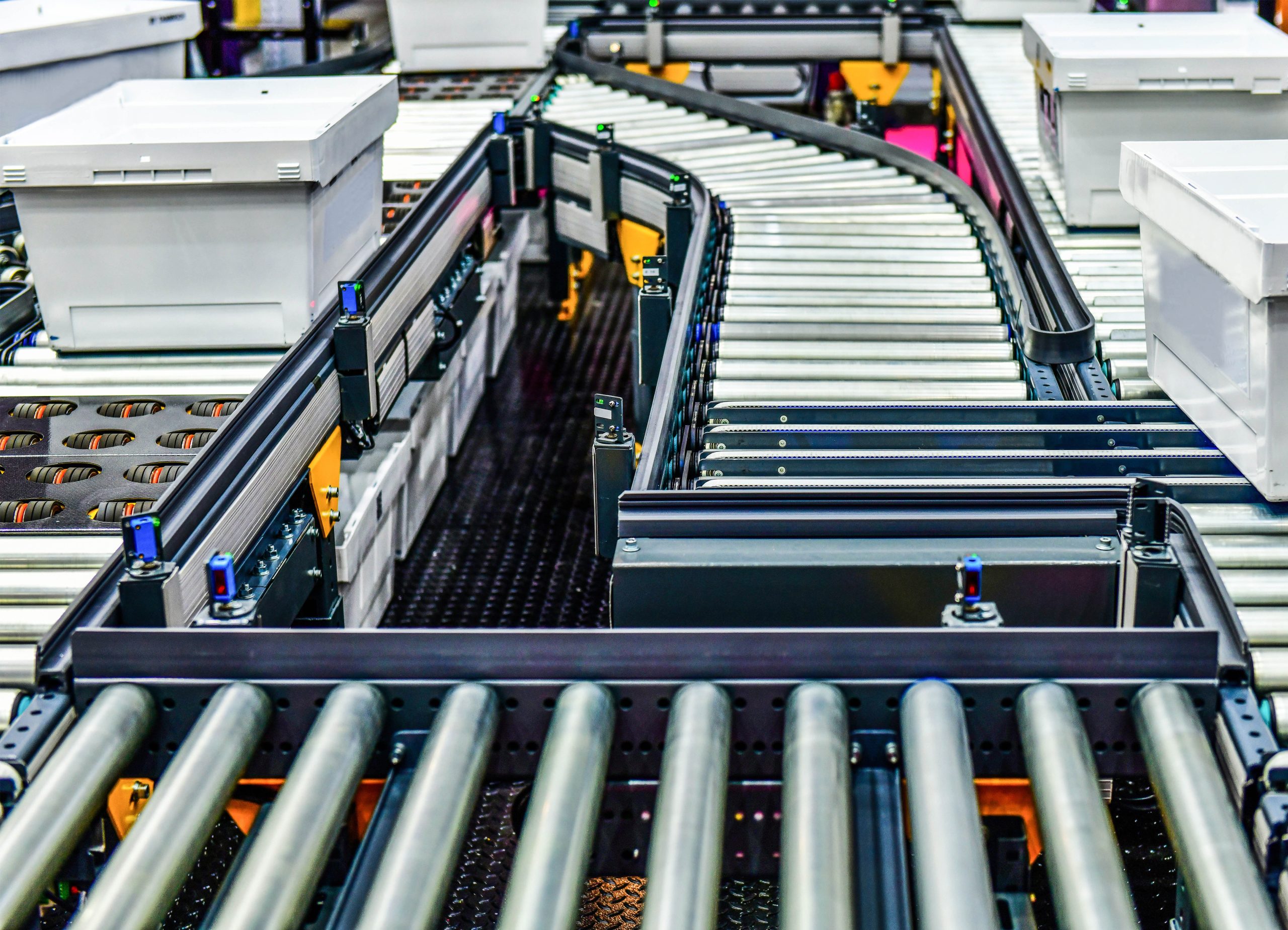

Logistics and Automated Infrastructure: High-VFD Environments
The sorting systems and VFD arrays always bring your system heavy harmonic pollution, causing your transformer overheating, cable stress, and potential power faults. Serving for 5th and 7th order harmonics, our detuned reactors ensure you clean power with:
No Power Faults: Prevents voltage sags without nuisance tripping.
Extended Infrastructure Life: Reduces thermal stress for lower long-term maintenance.
Optimizes Energy Demand: Helps your facilities meet strict energy consumption targets.

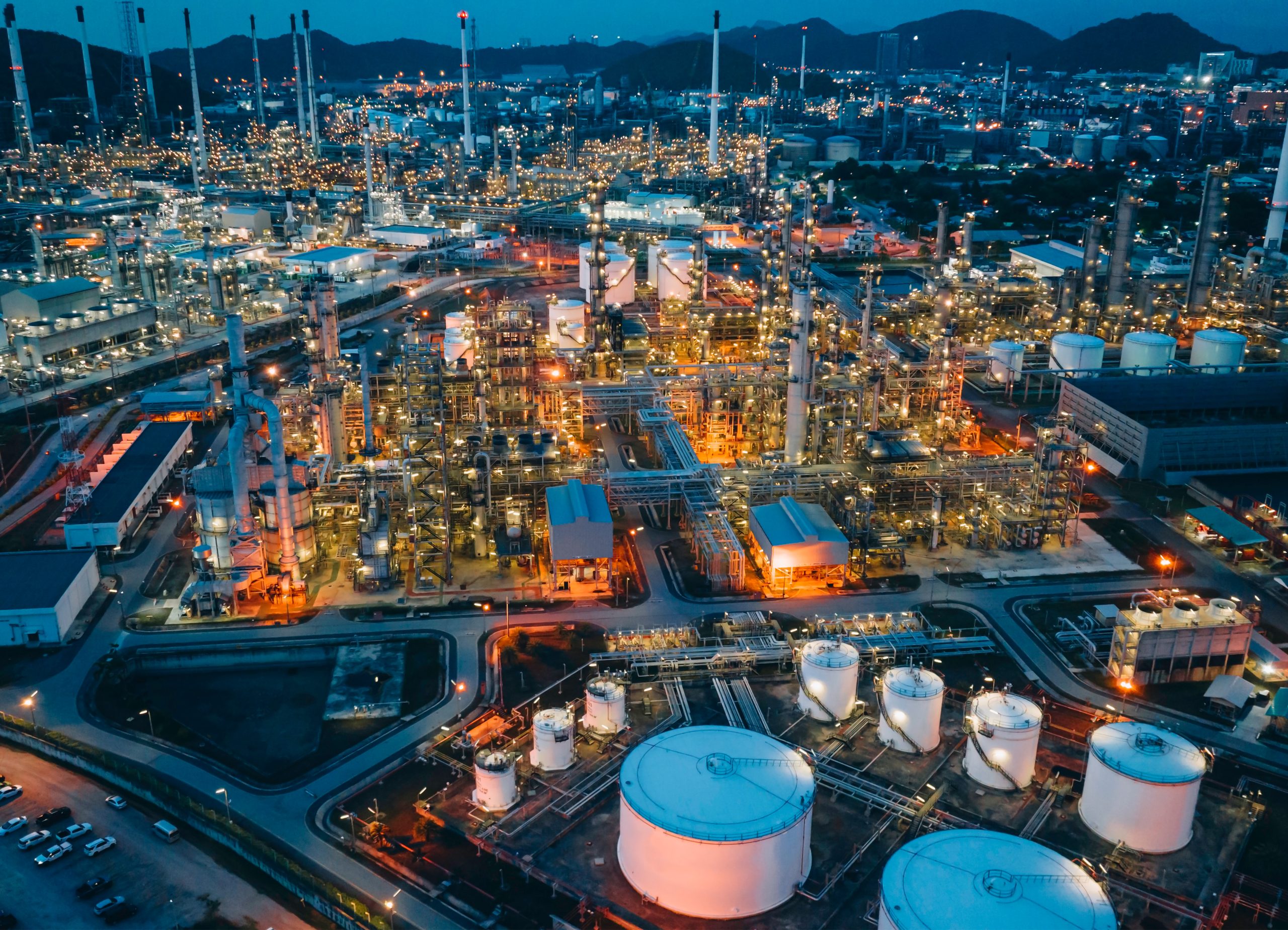

Chemical and Petrochemical: Heavy-Duty Process Loads
The extreme harmonic distortion from large-scale pumps and rectifiers might threaten your transformer and cause production shutdowns. Built for harmonic amplification and voltage spikes, our detuned reactors deliver you:
Maximizes Uptime: Prevents harmonic-related power faults.
Extended Infrastructure Life: Prevents severe thermal overstress and insulation degradation.
Guaranteed Compliance: Compliant with IEEE 519 limits, vital for safe and compliant plant operation.
Our Detuned Reactor Solutions
Explore our low-voltage and medium-voltage detuned filter reactors. Designed to prevent harmful harmonic resonance and protect your capacitors.
Engineered for low-voltage PFC cabinets, it is built with a 3% inductance tolerance with Class H VPI insulation to stop capacitor blowouts.

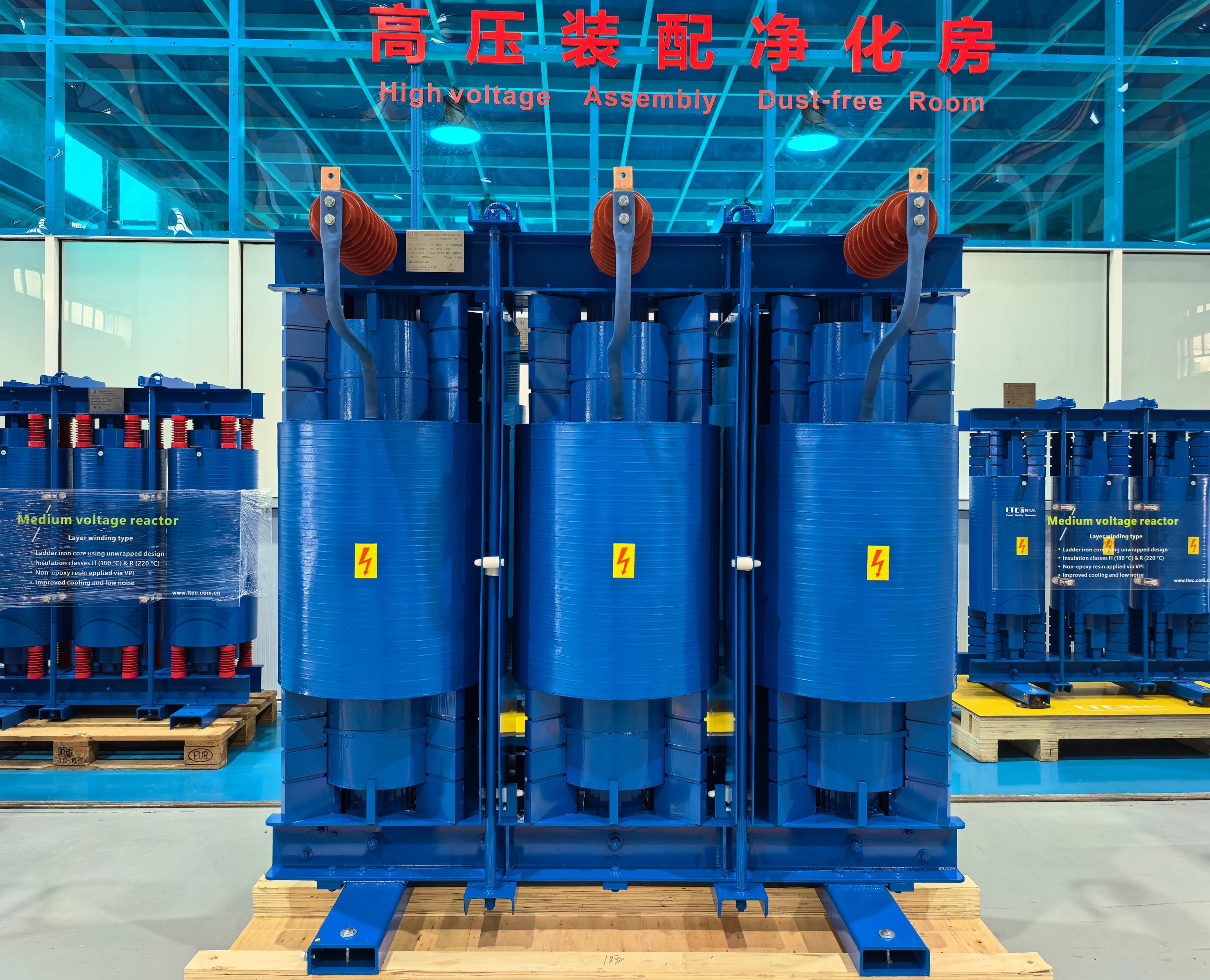

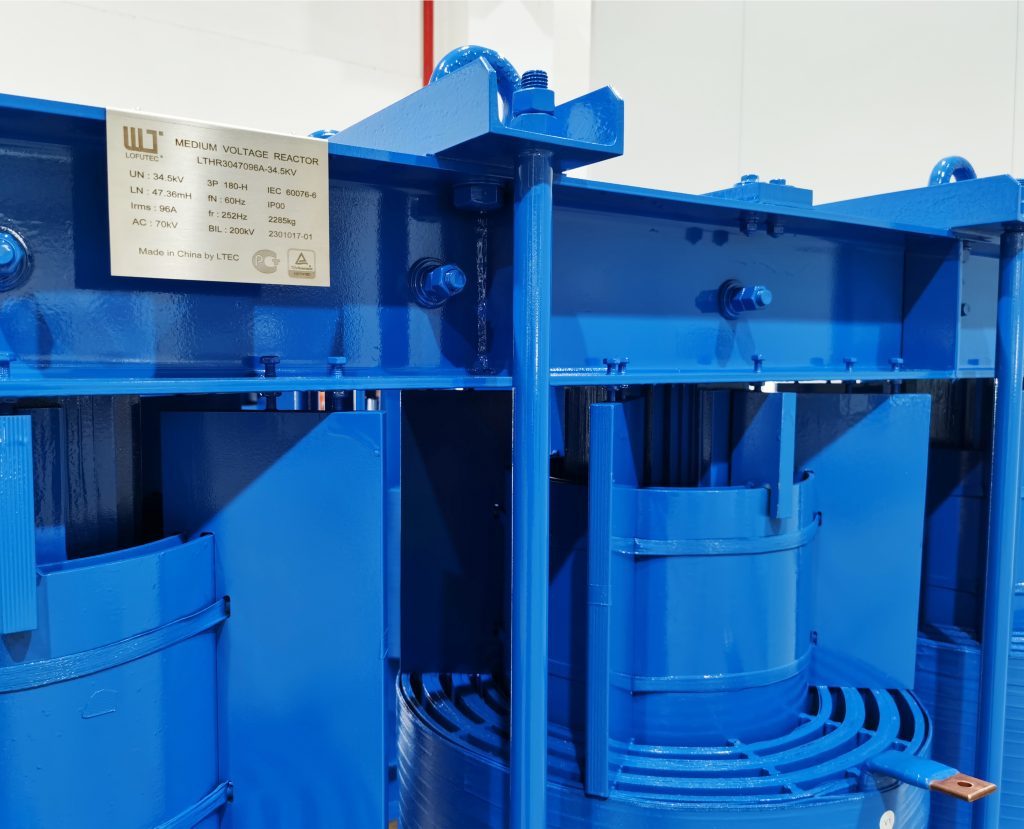

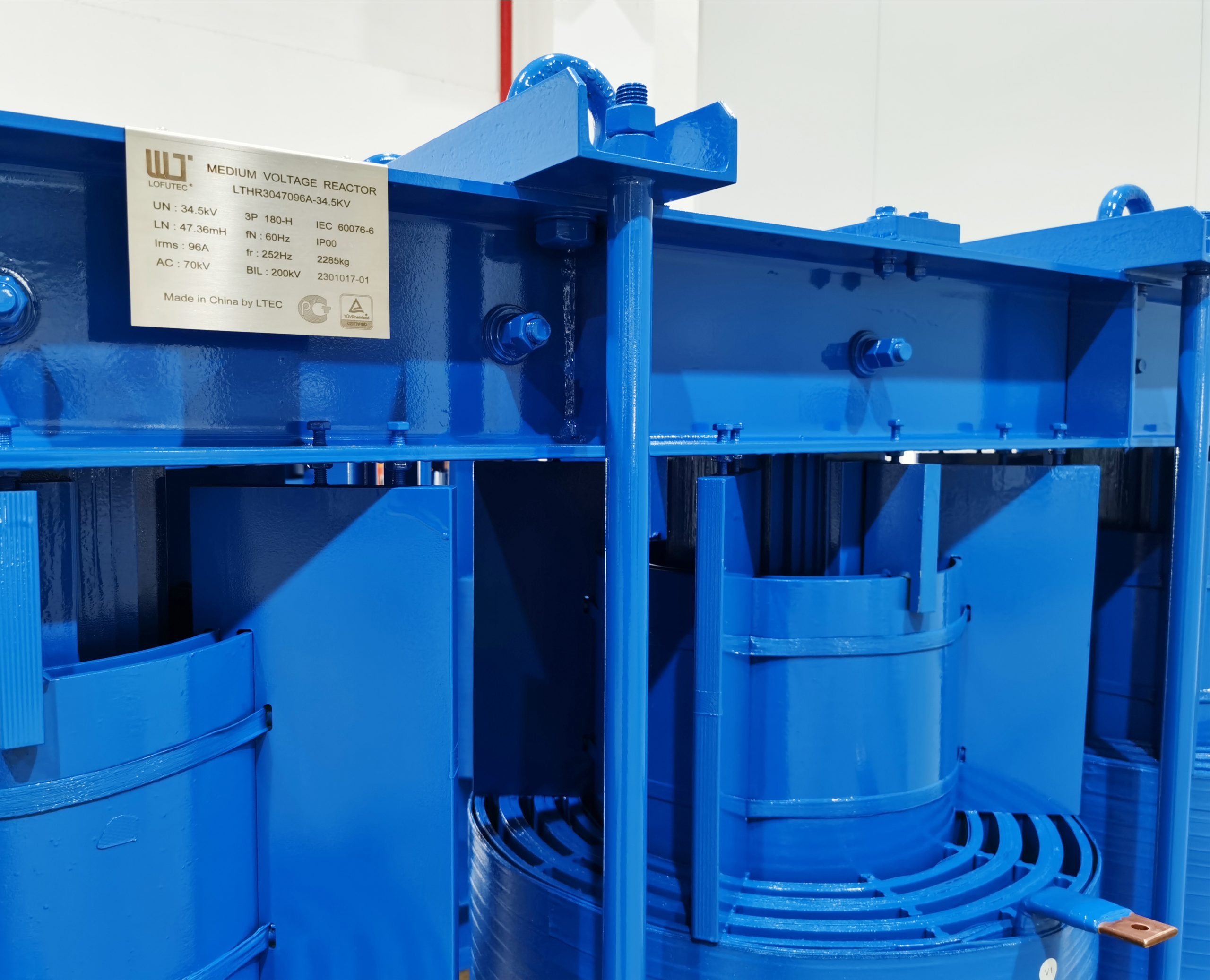

Built with heavy-duty iron-core and high BIL ratings up to 200kV, it shields renewable substations and heavy industrial grids from transient switching surges.
Detuned Reactors Technical Data
Review our technical comparison to evaluate cooling methods, winding materials, insulation classes, and harmonic resilience for both LV and MV detuned reactors for your power quality system.
| Technical Parameters | LV Detuned Reactor | MV Detuned Reactor | What It Means for You |
| Cooling Method | Natural Air (AN) | Natural Air (AN) | Simple, reliable, maintenance‑free. |
| Winding Material | Aluminum Foil or Copper | Aluminum Foil or Copper | Copper for maximum performance or aluminum to fit your budget. |
| Insulation Class | Class H (180°C) | Class F (155°C) or Class H (180°C) | Class H for extreme heat, Class F for standard duty. |
| Degree of Protection | IP00 | IP00 / IP20 (Enclosure dependent) | LV: open‑type for cabinet integration; MV: enclosure options protect against dust and moisture. |
| Harmonic Resilience | Up to 50% Nll (with proper reactor) | Designed per site-specific grid harmonic profile | High harmonic absorption and custom‑tuned to your grid’s unique harmonic signature. |
| Core Construction | Multi-gap Grain-Oriented Silicon Steel | High-Permeability Silicon Steel with precision spacers | Both use premium magnetic materials. |
| Thermal Protection | Integrated NC Switch (130–150°C) | Multi-stage PT100 or Thermistor Monitoring | Continuous, multi‑point thermal monitoring for critical systems. |
| Standard Compliance | EN60076-6, IEC60076-6 | IEC 60076-6, IEEE C57.16 | Both fully compliant. |
You can choose from:
7% (Standard): For most industrial loads, mitigating 5th and 7th harmonics.
5.7%: For specific networks with dominant harmonic order above the 11th.
14%: For systems wi th high 3rd harmonic content or voltage instability.
If you are unsure about your system harmonic order, you can reach out to our engineering teams for help.
The reactor and capacitor always naturally increase the voltage across the capacitor terminals.
When you are using standard-rated capacitors, they may lead to dielectric breakdown, thermal failure, and costly system downtime.
So, to ensure you an extended operational life, we strongly recommend you 440V or 525V capacitors for 400V/415V networks.
Yes. Engineered for seamless integration with aligned inductance (mH), current (A), and impedance (p%) for your original design, our units can function perfectly.
However, you need to clear about the matched parameters. If not, there may be dangerous frequency shifts that will cause damage to your capacitors.
Simply share your existing reactor's nameplate photo or datasheet, and we can ensure you a safe upgrade and free technical compatibility review.
If there are unexpected harmonic surges from detuned reactors overheating, it is essential with a thermal switch for active defense.
Once winding temperatures exceed safety limits, the internal thermal switch will disconnect the circuit to prevent fire hazards.
No. The detuned reactor is not a total harmonic cleaner, and they are built for resonance and amplification prevention.
For total harmonic elimination, you can combine the detuned reactors with active harmonic filters to ensure you maximum protection for your equipment and total grid compliance.
Standard Clearance: You need to maintain a minimum of 30 mm between phases and between adjacent reactor units.
Optimal Layout: We recommend a Zig-Zag installation pattern for natural convection and heat accumulation prevention.
Pro-Tip: Ensure your cabinet design with adequate ventilation ports.
Building your system a solid, moisture-proof structure, the VPI ensures you significantly noise reduction and consistent electrical impedance and reliability throughout your system's operational lifecycle.
It is highly discouraged to connect detuned reactors and capacitors in the same enclosure.
During operation, the reactors will dissipate significant heat that may drastically shorten your capacitor life if they are installed in the same space.
The Recommended Layout: We strongly recommend a "top-down" configuration if necessary. You need to place the reactors at the top and the capacitors at the bottom.
Our Tip: To ensure you detuned reactors and capacitors maximum reliability, you are better to maintain a minimum 30mm clearance around reactors for optimized heat dissipation.
When a reactor saturates, the inductance will drop. It may cause harmonic resonance and capacitor failure. However, the linearity determines whether your reactors stay in tune during high-load periods.
The LTECPower Advantage
Engineered to maintain >95% nominal inductance even up to 175% rated current, our detuned reactors ensure you superior linearity and remain perfectly "detuned" at all times, preventing dangerous resonance and protecting your capacitor banks.
Annual Routine
We recommend an annual inspection on connection integrity, thermal safety, and thermal efficiency. So you need to check the terminals, switch wiring, and remove dust/debris to ensure airflow routinely.
The Safety First Rule
Before starting any inspection, you need to always isolate the system and allow a 5-minute discharge period for capacitors.
Maintenance Tip
Designed for long-term stability with minimal intervention, you should always notice any unusual vibration or noise during your routine. If there are any loose mounting or external harmonic issues, contact our technical team immediately for a quick assessment.
