Detuned Reactor vs. Harmonic Filter: Which One Do You Need for Your Facility?
August 12, 2026 | By Chris Wang
To optimize operational efficiency, modern industrial facilities always use Variable Frequency Drives (VFDs), soft starters, LED lighting, and switching power supplies. However, these non-linear loads bring power quality issues due to harmonics.
To address overheating transformers, nuisance circuit breaker tripping, or blown capacitor fuses, there are two key solutions: detuned reactors and harmonic filters.
Both of them can help mitigate power quality risks, but for different purposes. This guide details the technical distinctions, installation topologies, and selection criteria of detuned reactors and harmonic filters. So you can make the right choice.
1. Why Are Harmonics and Power Factor Correction (PFC) Interlinked?

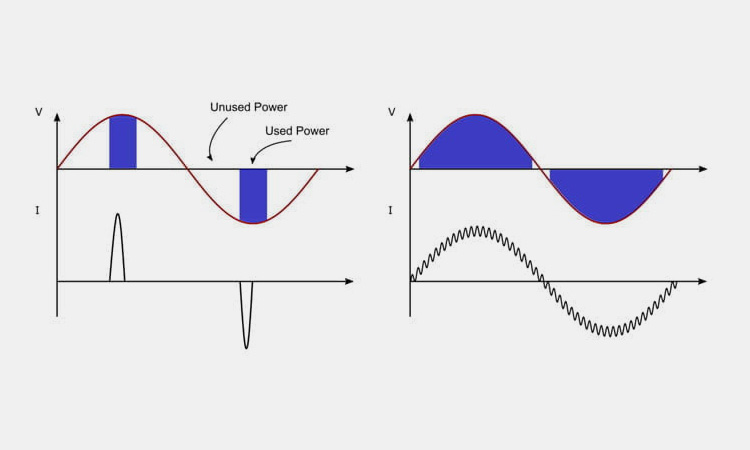

Power Factor Correction (PFC) capacitor banks are specifically designed to help with reactive power (kvar), utility penalty fees, and transformer capacity.

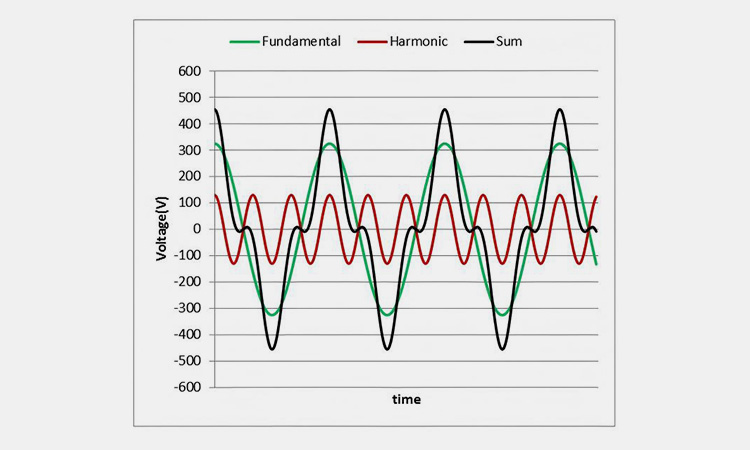

However, if you connect a standard capacitor to a system full of harmonics, the capacitor will interact with the main supply transformer due to the capacitive reactance and inductive reactance.
So there will be a parallel resonant circuit. When the natural resonant frequency aligns with the harmonic frequency, the harmonic currents and voltages will be exponentially amplified.

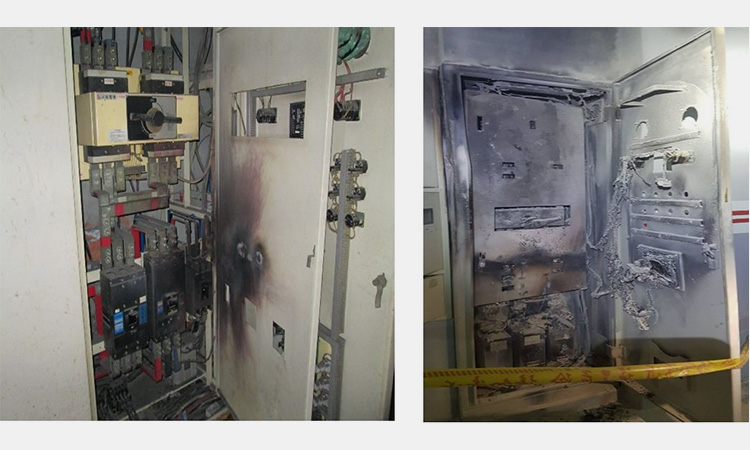

In the end, it will lead to severe overvoltage, bulging or exploding capacitors. Your plant will suffer unexpected downtime and great loss.
2. What Is a Detuned Reactor and How Does It Protect Capacitors?

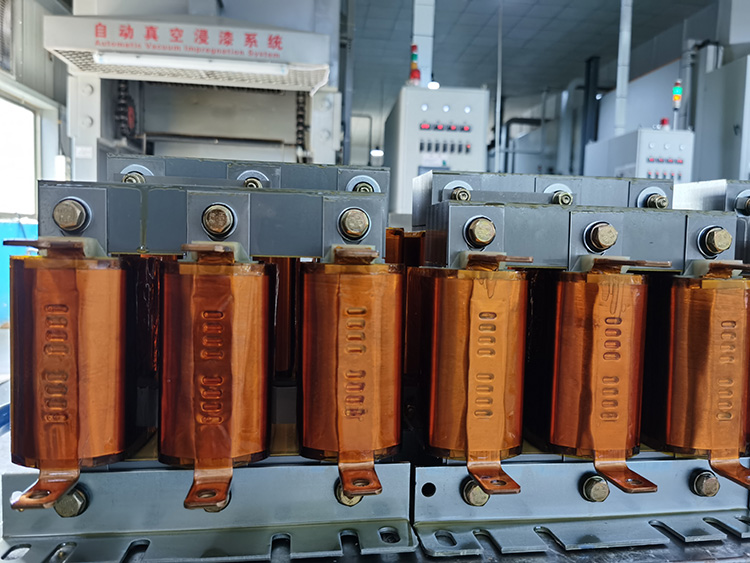

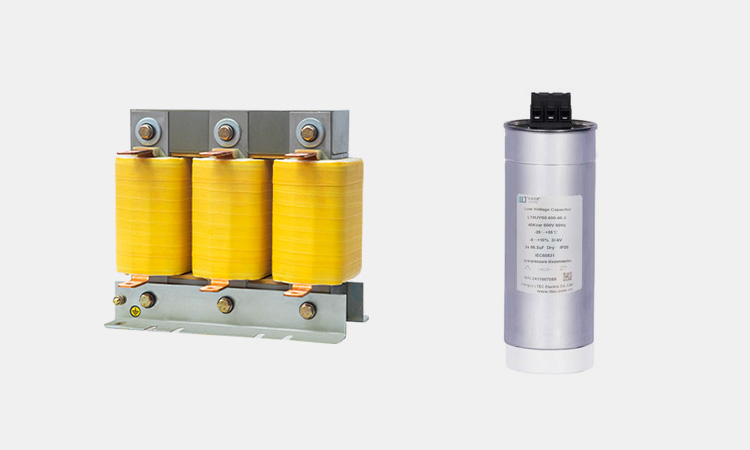

Also called an anti-resonance or blocking reactor, the detuned reactor is a heavy-duty three-phase iron-core inductor. It is connected in series with a PFC capacitor.
How does it work?

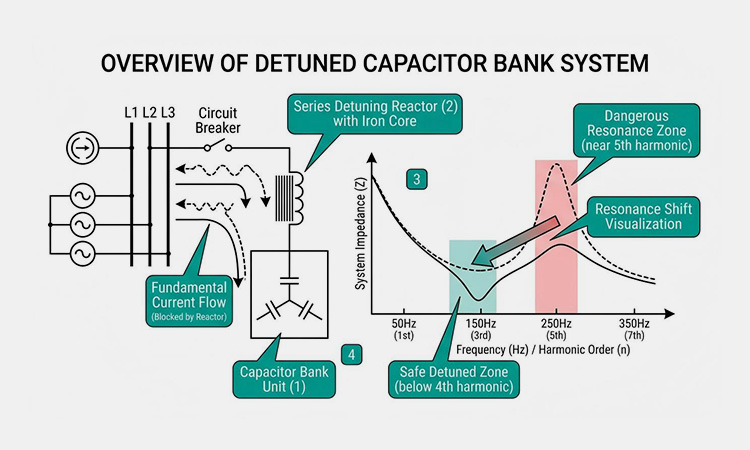

With a precisely calculated inductance ($L$), the detuned reactor can shift your overall system resonant frequency below the lowest-order harmonic. So your capacitors are protected from destructive current overloads.
3. What Is a Harmonic Filter (Passive vs. Active) and How Does It Clean Power?
The detuned reactor is mainly applied for protecting capacitors. However, the harmonic filter is applied for absorbing or eliminating the harmonic currents directly from the power distribution system.

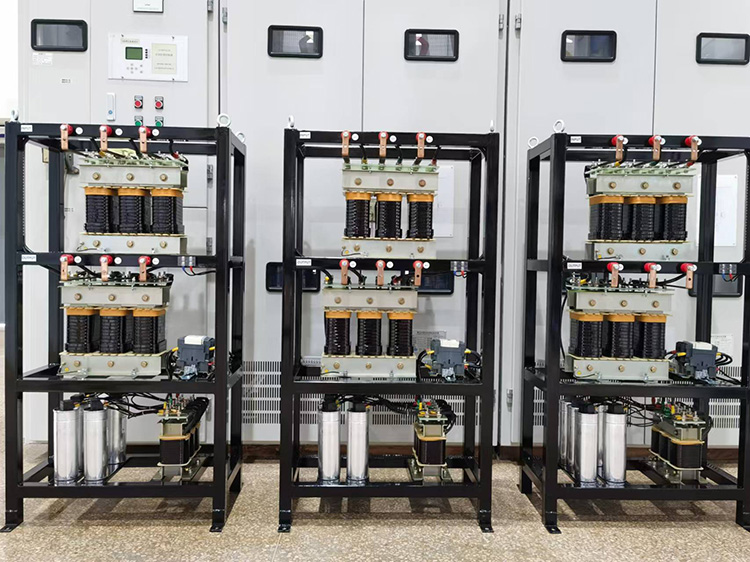

Passive Harmonic Filters (PHF)

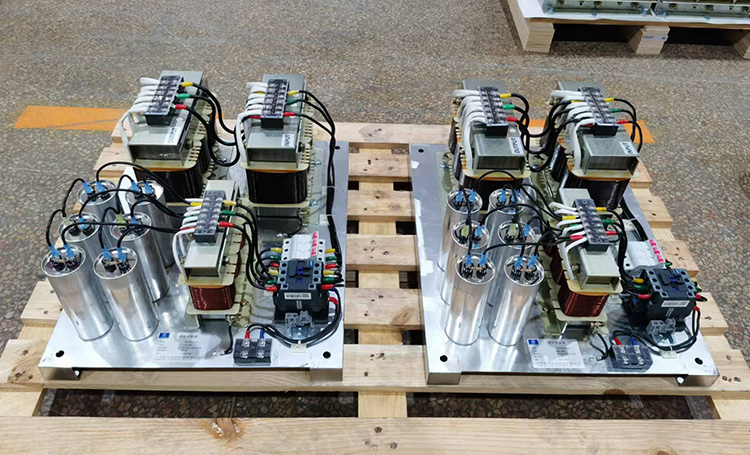

Connected in series or parallel ahead of non-linear loads (like VFDs), the passive harmonic filters are engineered LC or LCL circuits. By creating an ultra-low impedance path at specific harmonic frequencies (e.g., $250\text{ Hz}$ for the 5th or $350\text{ Hz}$ for the 7th), they can divert harmonics away from the upstream utility grid.

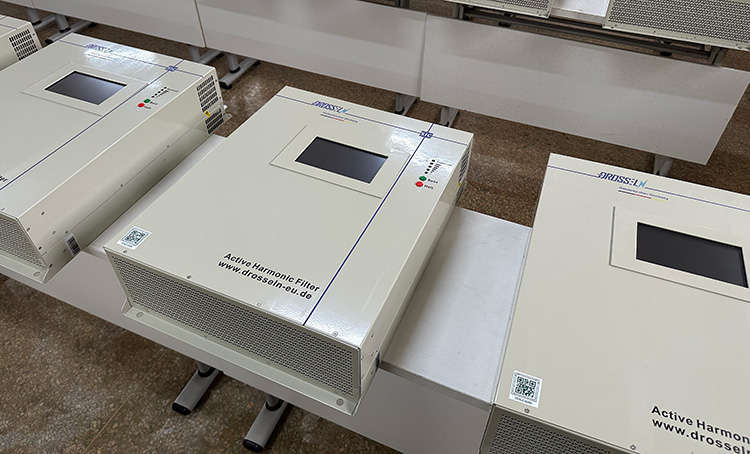

Active Harmonic Filters (AHF)

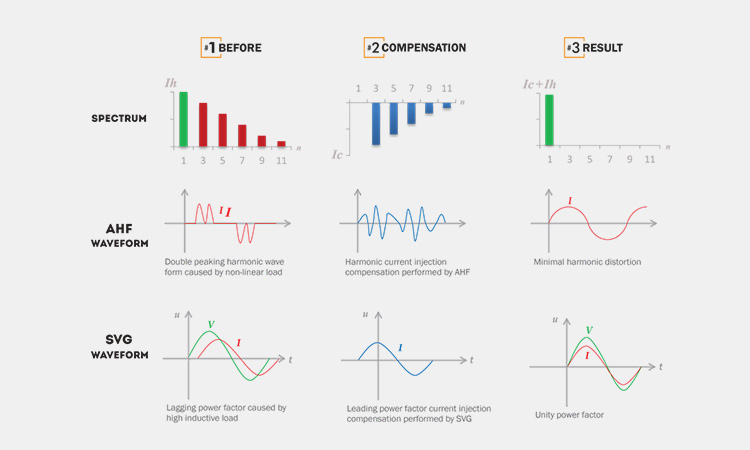

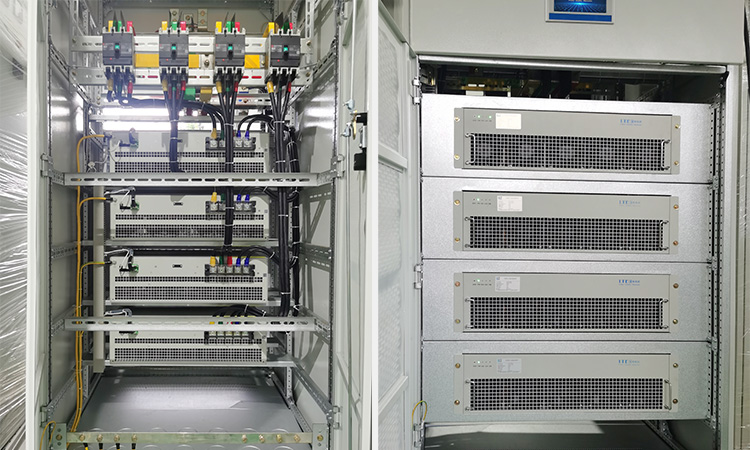

Connected in parallel with the main busbar, the active harmonic filters can monitor load harmonics in real time with current transformers. By injecting equal cancellation currents $180^\circ$ out-of-phase, they can dynamically neutralize harmonics up to the 50th order.
4. What Is the Fundamental Conceptual Difference Between the Two?
Detuned Reactors vs. Harmonic Filters: Key Differences
Detuned Reactors | Harmonic Filters | |
Primary Focus | Capacitor Bank Safeguarding & Anti-Resonance | Grid Cleansing & Standard Compliance |
Main Objective | Enable safe PFC without amplifying system harmonics. | Actively or passively trap harmonics to meet grid compliance. |
Compliance & Standards | Basic protection; not designed for strict grid emission limits. | Engineered to meet IEEE 519-2022 ($\text{THDi} < 5\%$) or EN 50160 ($\text{THDv} < 8\%$). |
Best For | Standard PFC in moderate‑harmonic environments. | Facilities requiring strict harmonic compliance. |
5. How Are They Integrated into the Power System?
They are installed:

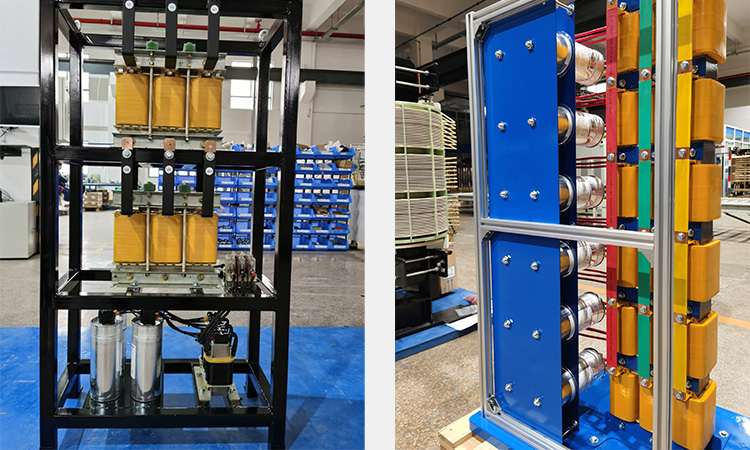

Detuned Reactor: Connected directly in series with the individual PFC capacitor, detuned reactors are applied inside the power factor correction panel to protect your capacitors and anti-resonance.
Passive Harmonic Filter (PHF): Placed directly at the AC input terminals of individual VFDs, the passive harmonic filter can absorb the harmonic currents at the source.
Active Harmonic Filter (AHF): Connected in parallel at the main busbar, the AHF can monitor and dynamically trap all facility harmonics in real time.
6. Protection vs. Mitigation: Capacitor Safeguarding vs. IEEE 519 Compliance
Detuned Reactors (Capacitor Protection)
As the “bulletproof vest” for capacitors, the detuned reactors are only responsible for keeping your PFC capacitor bank from exploding due to resonance. Only handling a little bit of harmonics, they will not clean up your grid. So your overall THDi will still stay around 20% to 30%.
So if you want to upgrade the capacitor bank, you can choose a detuned reactor.
Harmonic Filters (Harmonic Mitigation)
Acting as a “powerful, all-around air purifier” for your power grid, the harmonic filter can precisely control your THDi, even when it exceeds 60%. By forcibly suppressing the harmonics below 3%~5%, it can ensure your facility passes strict utility regulations (IEEE 519).
If you need to clean up your dirty power and make it compliant with strict standards, then a harmonic filter is the right choice.

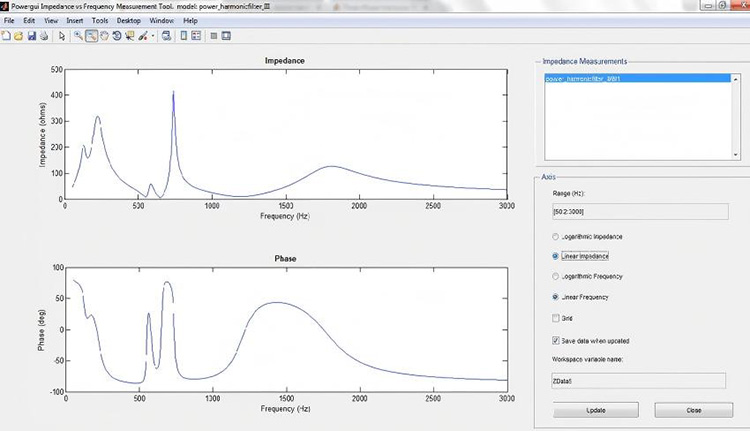

7. Tuned Reactor vs. Detuned Reactor: Understanding Resonance Frequency Tuning
Both of them are reactors, but different in tuning frequency. They are both three-phase iron-core inductors and connected in series with a capacitor to form an LC circuit. However,
Tuned Reactor (Filter Reactor)
Engineered to target specific harmonic frequencies (e.g., tuned precisely to $250\text{ Hz}$ for 5th harmonic trapping), it is a “harmonic sink” to help you clean up the power.
Detuned Reactor
Cleaning up your power system, the detuned reactors can set your harmonic frequency below the lowest harmful levels. They are measured by:
- $p = 7\%$ ($f_r = 189\text{ Hz}$ at 50 Hz): The most standard type for grids with moderate 5th harmonic presence ($\text{THDv} < 8\%$).
- $p = 5.67\%$ ($f_r = 210\text{ Hz}$ at 50 Hz): Higher tuning for lighter harmonic environments.
- $p = 14\%$ ($f_r = 135\text{ Hz}$ at 50 Hz): For heavy industrial grids with 3rd and 5th harmonics.
8. Performance Comparison: THDi Reduction and Power Factor Improvement
Detuned Reactor PFC Bank
Good at power factor correction ($\cos\phi \rightarrow 0.95 – 0.98$), the detuned reactors can keep your power bills low and protect your capacitors from overheating and blowing up. However, they can not clean up your grid harmonics. Your $\text{THDi}$ will still stay around 20%–30%.
Passive/Active Harmonic Filter
Excellent at THDi mitigation ($\text{THDi} < 5\%$), the passive and active harmonic filters can sweep away your electrical pollution. They can ensure you are fully compliant with strict utility standards and also help you out with power factor correction.
9. Summary: Detuned Reactor vs. Harmonic Filter
Let’s explore the key differences between detuned reactors and harmonic filters.
Detuned Reactor (Anti-Resonance) | Passive Harmonic Filter (PHF) | Active Harmonic Filter (AHF) | |
Primary Function | Protect PFC capacitors; prevent grid resonance. | Trapping drive-generated harmonics. | Dynamic multi-order harmonic cancellation. |
Circuit Topology | Series with PFC capacitors. | Series at VFD AC input. | Parallel (Shunt) to main busbar. |
THDi Target | Moderate ($\sim20\% – 35\%$). | Excellent ($< 5\% – 8\%$). | Superior ($< 3\% – 5\%$). |
IEEE 519 Compliance | No (requires additional filtering). | Yes (at rated drive loads). | Yes (dynamically across all loads). |
Resonance Risk | Eliminates resonance. | Engineered to prevent resonance. | Zero resonance risk. |
Thermal/Current Linearity | $135\% – 200\%+ I_N$. | High linearity. | N/A (IGBT-based current generator). |
Thermal Protection | Integrated NC microswitch ($120^\circ\text{C}-180^\circ\text{C}$). | Thermal switches on coils. | Active heatsink monitoring & rollback. |
10. How Does a Detuned Reactor Prevent Capacitor Bank Resonance and Overheating?
When you connect a detuned reactor ($L$) and a capacitor ($C$) together, they create a specific tuning frequency:
$$f_r = \frac{1}{2\pi \sqrt{L \cdot C}}$$
In industrial grids, the biggest problem is the 5th harmonic (250 Hz). By using a $7\%$ setting, your frequency will be locked at 189 Hz (for 50 Hz systems). To keep your frequency safely at 189 Hz below 250 Hz, your power grid cannot resonate.
11. When Is a Power Factor Correction Harmonic Filter Needed?
If your facility is suffering from both poor power factor and high background harmonic distortion, then a harmonic filter is needed.
Instead of choosing detuned PFC banks, active harmonic filters with detuned PFC banks are the best choice.
While detuned PFC banks control the bulk reactive load at low cost, active harmonic filters can help clean out harmonics.
12. Can a Detuned Reactor Replacement Satisfy Strict Utility Limits Alone?
No. Through detuned reactor PFC can eliminate resonance and protect capacitors, they can not absorb enough harmonic current to help meet strict utility limits like IEEE 519-2022.

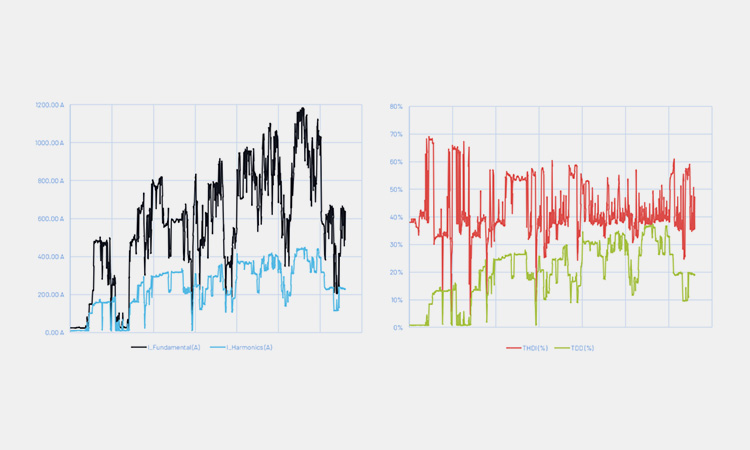

So if your local utility requires $\text{THDi} < 5\%$, not only for anti-resonance or capacitor protection, but also for dedicated passive or active harmonic filters are your best choice.
To install a harmonic filter alongside the detuned PFC bank, your THDi can be greatly controlled below 5%.
13. When Should You Choose a Detuned Reactor (Anti-Resonance PFC System)?
You can choose a detuned reactor assembly instead of harmonic filters if:
- Want to improve power factor and avoid utility low-PF penalties.
- Your facility operates VFDs, soft starters, or electronic drives alongside PFC capacitors.
- Protect capacitors from bulging, overheating, or repeatedly blowing fuses.
- Reduce transformer and cable heating caused by reactive current.
14. When Is a Complete Harmonic Filter System Mandatory?
If you require the following, then a passive or active harmonic filter is needed:
- Your facility needs to comply with IEEE 519-2022 or EN 50160.
- If your sensitive equipment, like medical imaging devices, data centers, or precision CNC machines suffering from unexpected trips and faults due to voltage waveform distortion.
- When you are installing large 6-pulse VFDs or DC drives in municipal water treatment plants, chemical processing facilities, or oil and gas extraction sites.
15. Premium Detuned Reactors & Harmonic Filtering Equipment
Whether you are looking for premium detuned reactors or harmonic filter solutions, all our reactors and filters are built for harsh industries with reliability.

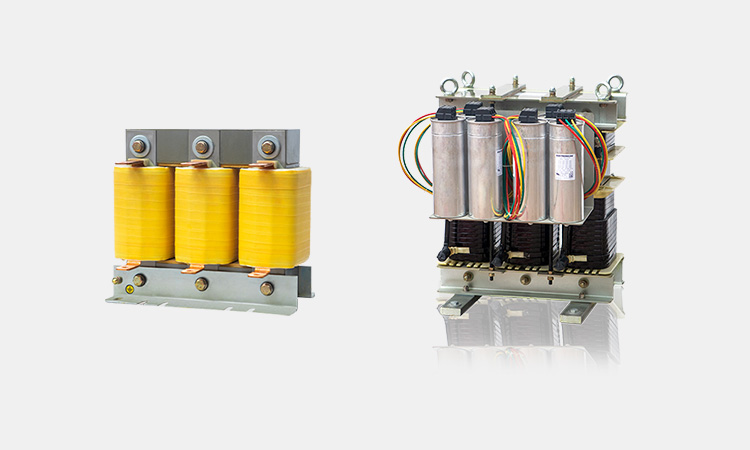

High-Linearity Detuned Reactors
Built with $150\% – 200\%$ linearity, our reactor core will never saturate even during heavy harmonic surges. Our VPI technology ensures you quiet, low-loss operation.
Built-In Thermal Safety
Every one of our reactors is embedded with thermal switches ($120^\circ\text{C} – 180^\circ\text{C}$). They can help you with real-time monitoring for overheating.
Guaranteed Harmonic Control
Our passive filters and dynamic AHF solutions are specifically designed for your power system with guaranteed $\text{THDi} < 5\%$ performance.
Conclusion:
Before choosing a detuned reactor or harmonic filters, you need to identify your system problems first. Are you trying to protect your capacitors while fixing power factor, or are you targeting harmonic distortion to satisfy electrical grid standards?
For Power Factor Correction without resonance risk, you can explore our high-linearity detuned reactors.
For IEEE 519 harmonic compliance, you can explore our harmonic filter solutions.
Contact our engineering team today to schedule an on-site power quality audit and custom sizing evaluation!
FAQs About Detuned Reactor vs Harmonic Filter
Can we use a detuned reactor and an active harmonic filter at the same time?
Yes, absolutely.
As an ultimate power quality solution, an active harmonic filter with a detuned PFC bank can both lower your electricity bills and protect your capacitors. At the same time, they can clean out the overall harmonics to guarantee you strict compliance.
What happens if I install a standard capacitor without a detuned reactor in a VFD-heavy plant?
Without a detuned reactor, your capacitors may form a parallel resonant circuit with your system transformer.
So there will be severe harmonic amplification. In the end, your factory may face unexpected equipment downtime, blown fuses, and even capacitor explosions.
What should I do if my plant expands and adds more VFDs to an existing detuned PFC system?
VFDs are non-linear loads. They may increase your overall background harmonic distortion. The detuned reactors will continue to protect your capacitors. But the overall harmonic pollution might exceed the limits.
In this case, no need to replace the detuned PFC bank; you can simply install a parallel active harmonic filter at the main busbar.
In the end, you will get complete compliance.
Do passive harmonic filters require custom tuning for every application?
Yes.
By using fixed LC or LCL circuits tuned precisely to specific frequencies (like $250\text{ Hz}$ for the 5th harmonic), the passive harmonic filters must be custom-engineered based on your specific load profile.
Will installing a harmonic filter improve my monthly utility electricity bills?
Yes, the harmonic filter can improve your grid in two ways.
Ensuring a high and stable voltage, it can greatly reduce utility penalty fees. By reducing thermal losses in your transformers and cables, the harmonic filter can save energy and extend your equipment’s lifespan.
