Shunt Reactors For High‑Linearity PFC Correction
- IEC / IEEE / CE / UL Certified: Global compliance, hassle‑free approvals.
- Multi‑Gap Core Design: Low losses, low noise, extended life.
- CAD & Submittals in 48 Hours: Fast track your engineering review.
Our Standards

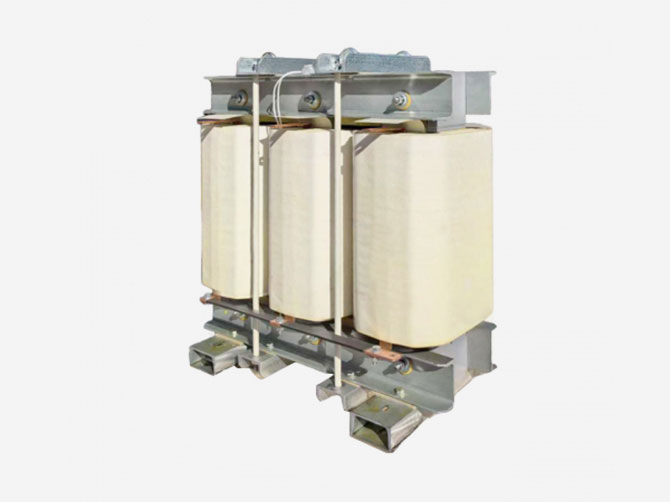

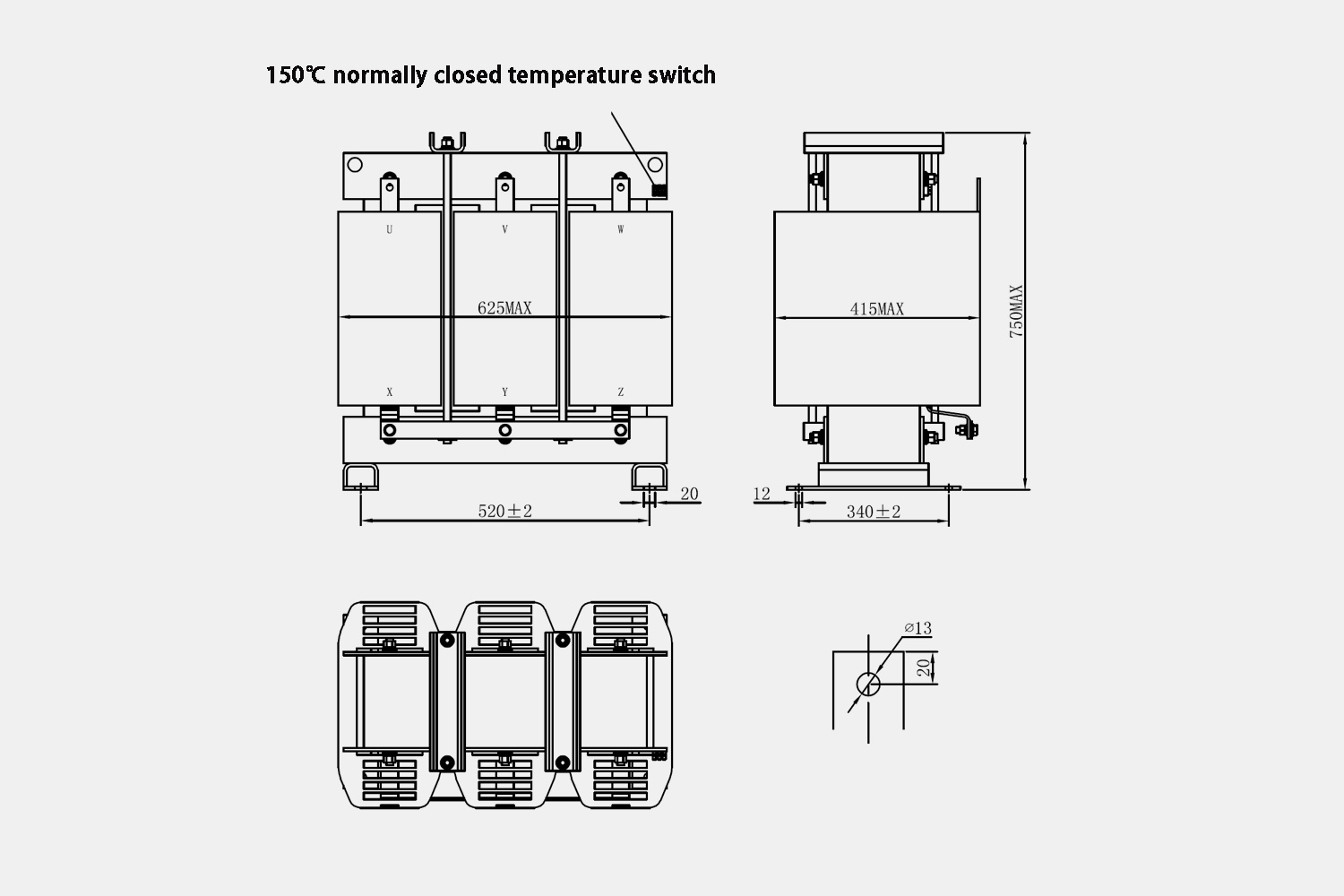

Gapped Iron‑Core Shunt Reactors
- 130°C Thermal Switches: Real‑time monitoring, no winding degradation.
- Multiple Air Gaps: Lower noise, less structural stress.
- ±3% to ±5% Inductance: Precise tuning, stable var absorption.
- <1% × Qn Losses: Maximizes panel efficiency.
- Copper or Aluminum: Flexible to your budget.
- 3kV Insulation Test: Reliable transient overvoltage ride‑through.

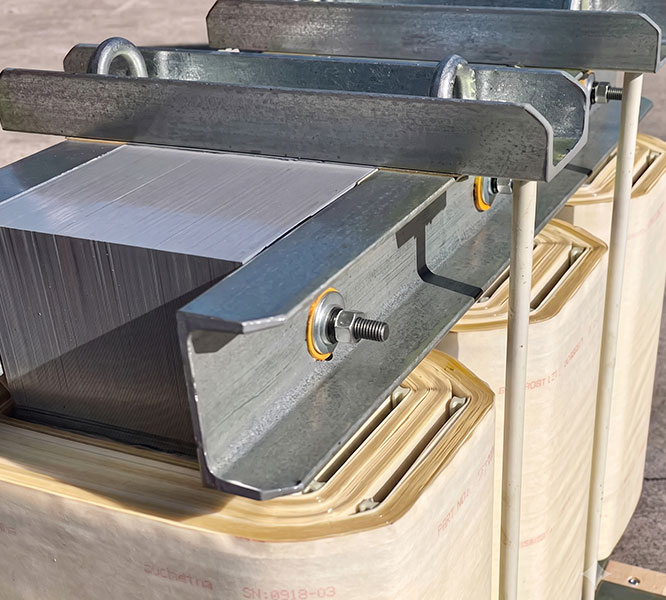

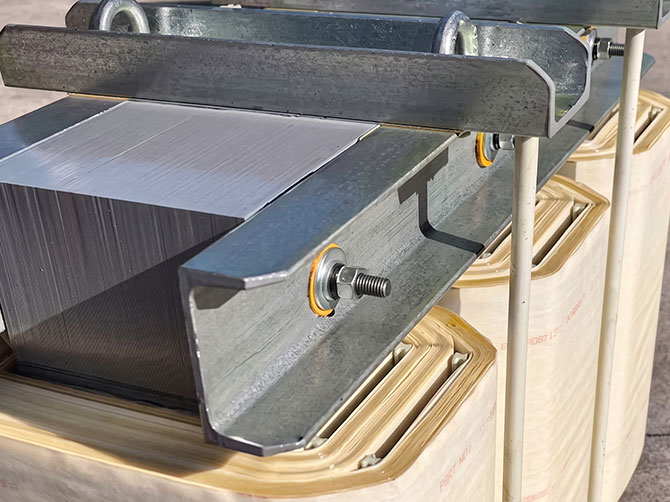

Magnetic Circuit Optimization
15% Overvoltage Linear Safety
Traditional solid-core reactors are prone to overheating and failure during voltage spikes. Engineered with CRGO gapped-core, our shunt reactors have no magnetic saturation even under grid fluctuations.
Whisper-Quiet and Vibration-Free Operation
With precision ceramic air gaps and a rigid clamping structure, our reactor’s core is firmly locked in place, ensuring you less hum, less stress on enclosures, and a quieter, more comfortable environment.

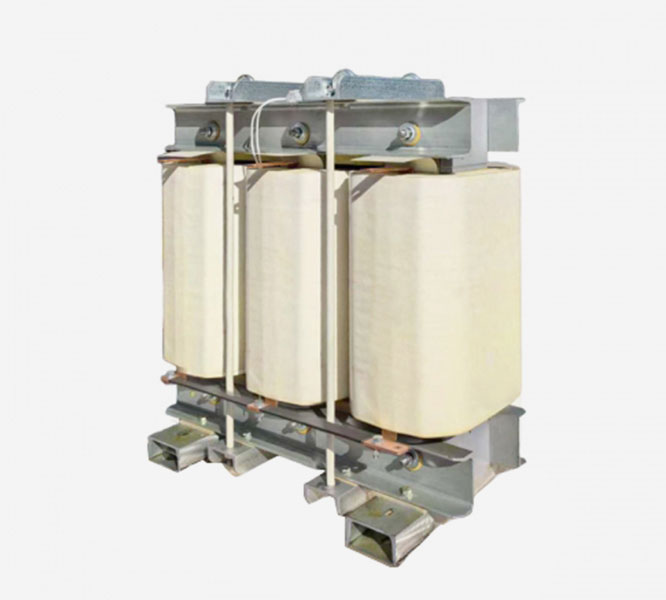

For Compact Switchgear Integration
Space means money in modern electrical rooms. Built with optimized magnetic circuits and a rigid non‑deforming core layout, our shunt reactors ensure you minimal structural heat losses.
Copper and Aluminum Customization
Every project is different. To respect that, we offer you a flexible coil made of 100% pure aluminum to support your strict cost control and balance your budget.
No Hot Spots
To eliminate the hidden risk of localized, dangerous heat, our shunt reactors are engineered with internal conductors at calculated intervals, ensuring a perfectly uniform current distribution.
Precision-Brazed Joints
Using natural vertical cooling ducts, our coils can breathe freely without noisy external fans. And a precision-brazed connection, so your power network stays uninterrupted for decades without vibration fatigue.

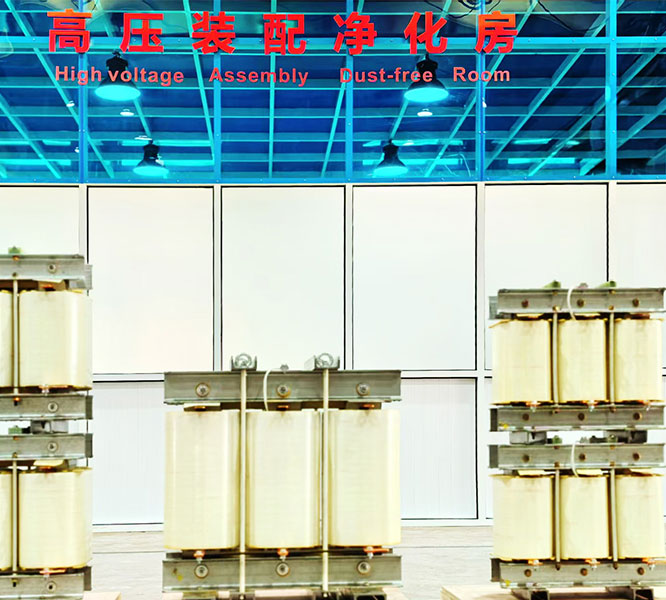

Insulation and Transient Resilience
Thrive in the Harshest Climates
Processing through Vacuum Pressure Impregnation (VPI), our shunt reactors deliver you a Class H barrier (rated to 180°C). Shielding the coastal moisture, outdoor UV, and chemical dust, the reactors thrive in brutal conditions.
Absorb the Hardest Grid Shocks
Designed with high dielectric strength against breaker voltage surges, every one of our reactor units passes a strict 3kV factory breakdown test before shipment to ensure you zero inter‑turn faults and unexpected downtime.
Watching Over Your Safety
Embedded with a 130°C micro‑temperature sensor, our reactors monitor the internal thermal conditions in real time, stopping catastrophic insulation burnout before it even starts. So they do not just protect your equipment, but also your entire facility.
Why Choose Our Shunt Reactors?
Engineered for LV and MV power networks, our iron-core shunt reactors deliver you precise inductive compensation, stabilizing system voltage profiles under light loads.
Ultra-Low Losses (<1% Qn)
Restricts total internal loss strictly below 1%.
Overvoltage Magnet Shield (1.15 * Ur)
Ensures smooth, harmonic-free operations when your grid gets volatile.
Weatherproof Class H VPI Insulation
Never softens or breakdowns in harsh tropical or coastal environments.
Flexible Copper and Aluminum Windings
Comfortably lower your upfront project budget.
Whisper-Quiet Acoustic Design
Perfect for tight, noise-sensitive subterranean or urban installations.
Zero-Latency Thermal Bodyguard
Eliminating the risk of catastrophic winding burnout.
Common Applications of Shunt Reactors
Industrial Power Factor Correction (PFC) and Managed Infrastructure

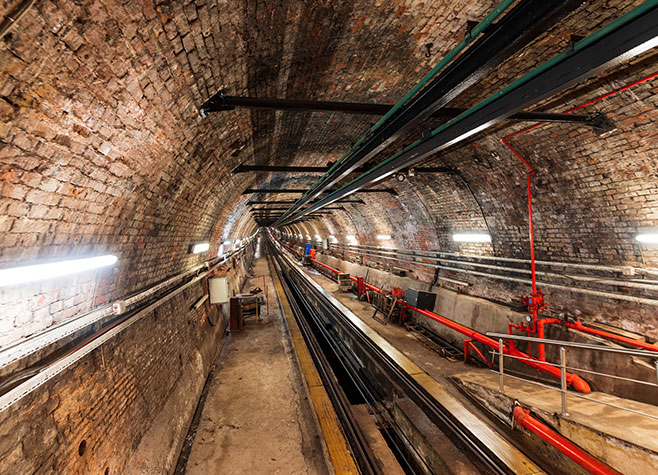

For factories with dense underground cables, our shunt reactor automatically absorbs dangerous parasitic capacitance, keeping your grid perfectly stable 24/7, every single night.
Connected with your detuned filters, the reactor blocks excessive current stress and prevents premature degradation and unexpected downtime.
With low-loss, high-linearity design, our shunt reactors are built for sustainable savings. Minimizing heat dissipation, they ensure you a smart, sustainable investment.
Urban Mass Transit and Electrified Transportation Hubs
Built for heavy-duty rail transit, our shunt reactors guard your metro grid.
Dynamically balancing mid-night cable capacitance with mechanical strength, they can prevent insulation burnout, surviving violent transit short-circuit shocks with whisper-quiet operation.
So your municipal communities are completely undisturbed.
Heavy Industrial Power Quality and Telecommunication Hubs
Engineered for high-capacity UPS and data centers, our shunt reactors can protect your servers and profits.
Acting as a smart purifier to neutralize network distortion during light-load server idle hours, they can eliminate your utility penalties and shield your fragile digital infrastructure from unexpected voltage surges.
So your data center can run safely and 100% uninterrupted.
Shunt Reactors for Power Quality Optimization
Engineered with an iron-core design, it stabilizes your operating voltage profiles across long, lightly loaded cable distribution networks.
Connected in series with low-voltage PFC capacitor banks, it prevents dangerous anti-resonance conditions and absorbs harmonic currents to protect your capacitors from overcurrent failure.
Constructed with multiple air-gaps to maintain precise impedance, it suppresses harmonic voltage distortion and withstands critical current chopping transients across rugged industrial distribution networks.

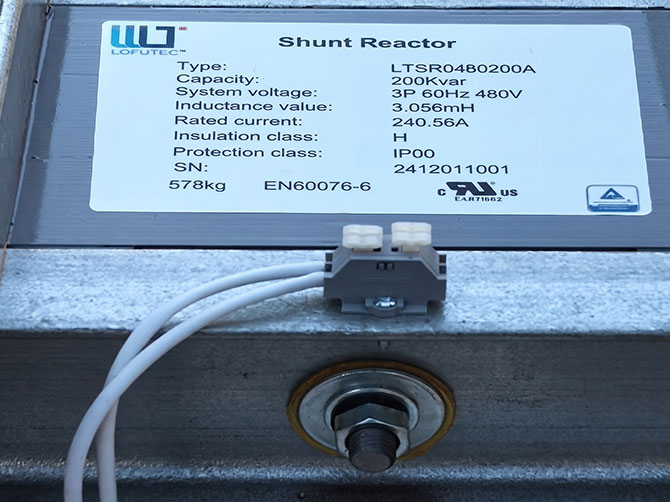

Shunt Reactors Technical Data
Designed with advanced multi-gapped steel cores and Class F/H VPI insulation, our shunt reactors secure your premium linearity limits and ultra-low core loss factors to safely insulate and protect your automated power networks.
| Product Category | Voltage Range | Tuning/ VAR Output | Inductance Tolerance | Core Linearity Limit | Core Loss Factor | Core Topology & Insulation | Primary System Value Proposition |
|---|---|---|---|---|---|---|---|
| LV Shunt Reactors | ≤1000 V | 1.0 to 80 kvar | ±5% | 1.15 * Ur | <1% * Qn | Multi-gapped core; Class F/H VPI | Absorbs parasitic capacitance; eliminates Ferranti effect, stabilizes voltage. |
| LV Detuned/Filter Reactors | ≤1000 V | 3.12 to 75 kvar | ±3% | Anti-saturation under harmonic overload | <1% * Qn | High-permeability core; Class F VPI (155°C) | Pairs with low-voltage capacitor banks prevent destructive parallel resonance. |
| MV Detuned/Filter Reactors | 6.6 kV to 35 kV | Up to 5,000 kvar (custom) | ±3% to ±5% | No saturation under transient overvoltages | Optimized for MV dissipation | Heavy-duty gapped core; Class H VPI | Suppresses harmonics, resists switching transients, robust and reliable. |
Absorbing capacitive reactive power (VARs) and avoiding dangerous voltage spikes.
Long underground cables and lightly loaded transmission circuits generate capacitive reactive power, which leads to a voltage rise.
Our shunt reactors provide immediate inductive counterbalancing and prevent terminal voltage rise. So you can get a stable voltage profile within the standard 0.95 to 1.05 p.u.
Engineered for low- and medium-voltage networks, our shunt reactors are your reliable shield. Built with precision-bonded ceramic air gaps, they can keep your performance perfectly stable up to 115% voltage spikes.
Before dangerous harmonic pollution starts, our reactors prevent your early core saturation. So your critical systems are safe from unexpected power surges.
Both of them are tailored solutions for your grid.
Shunt Reactors: Connected in parallel to absorb excess cable capacitance, shunt reactors can stabilize your midnight voltages.
Filter Reactors: Connected in series to safeguard your sensitive PFC capacitors from destructive resonance, filter reactors can keep your system safe, balanced, and worry-free 24/7.
Precision matching is crucial for reactors. Because a tiny shift in reactor tolerance may trigger destructive harmonic resonance. Your capacitor banks may lead to sudden burnout.
Built with strict, flawless inductance precision, every one of our reactor units can lock the safety frequency your system needs. Preventing thermal risks, they also keep your cabinet panel safe day after day.
The electromagnetic vibration loosens joints and disturbs nearby electronics.
To help you with that problem, our reactor can lock them down. Using heavy-duty, non-magnetic clamping steel with automatic VPI, our reactor delivers smooth, silent operation and ensures the cabinet runs smoothly for decades.
Yes, we offer fully flexible copper and aluminum winding customization.
The high-conductivity aluminum can comfortably lower your budget and weight. Copper can meet strict low-loss standards and tight cabinet spaces.
We can perfectly fit your needs.
Against switching shocks, our reactors can protect your uptime with Class H VPI insulation shield.
Rated up to 180°C, they never soften or drop and can completely block sudden short-circuit flashovers.
Built with a fire shield for your cabinet, our reactors deliver a 130°C thermal guard directly where the heat is highest.
If there are unexpected overload strikes, they can instantly send a zero-latency signal to trip your breaker.
So, the reactor ensures you a silent, zero-maintenance bodyguard to kill runaway thermal risks.
Sure.
To guarantee you pass any strict design review, we provide you with a submittal kit that is fully aligned with IEC and EN compliance.
With certified FAT logs and exact thermal gradient data to flawless 3D STEP design-in models, we help you win the contract with total confidence.
To keep your cabinets cool, safe, and efficient, our shunt reactors are built in vertical airflow paths and an ultra-low-loss profile.
Generating less waste heat and maintaining simple, standard ventilation clearances, they can help your panels stay under the safe 40°C line for decades
