Eliminating Transient Overvoltages: Zig-Zag Grounding Transformers
Stop Ground Fault Hazards in Delta Systems
Ungrounded networks cause severe damage to you during a ground fault, especially in a delta system. They are:
There is 73% voltage surge on non-faulted phases, which causes rapid insulation breakdown.
It will bring you 500% transient overvoltages driven by intermittent arcing. And they may destroy your downstream assets.
The Solution: Premium Zig-Zag Grounding Transformers
By establishing a virtual neutral point to stabilize your grid potential and clamp hazardous spikes instantly, our Zig-Zag grounding transformers deliver you:
42% Smaller Footprint
The advanced flux-summing engineering cuts your physical windings and drastically lowers your facility installation costs.
Instant Protection Tripping
With optimized zero-sequence impedance, the transformer allows relays to execute safe, automated power interruption during faults.
Continuous Grid Stability
Securely anchoring the network neutral, they protect your adjacent machinery from heavy voltage fluctuations.
Neutral Grounding Transformers: Core Technical Specifications
| Parameter | Technical Specification |
| Winding Configuration | Three-Phase Zig-zag (ZN) |
| System Voltage Class | Up to 35 kV |
| Insulation Medium | Dry-Type (VPI) |
| Basic Impulse Level (BIL) | 10kV – 200 kV (custom) |
| Continuous Neutral Current | ≥3% fault current (custom available for phase-neutral loads) |
| Short-Time Fault Current | Up to 2732 A (custom available) |
| Fault Current Duration | 10s, 30s, or 60s standard |
| Temperature Rise / Class | Class H (180°C), Class F (155°C), or Class B (130°C) |
| Enclosure Compatibility | NEMA 1/3R/4X, IP20-IP54, Tamperproof Padmount |
Eliminate Catastrophic Overvoltage with Advanced Zig-Zag Engineering

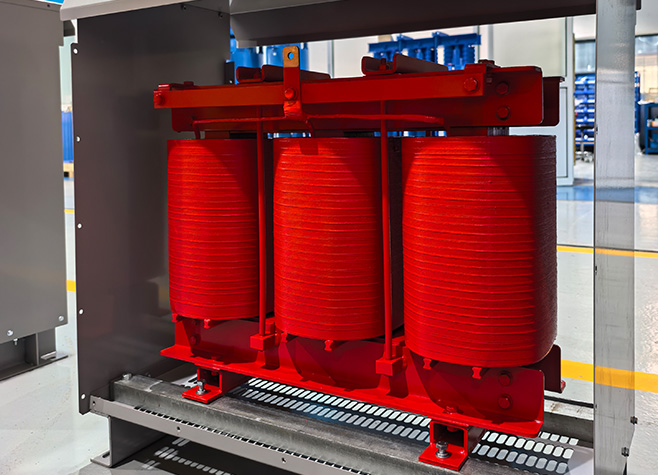

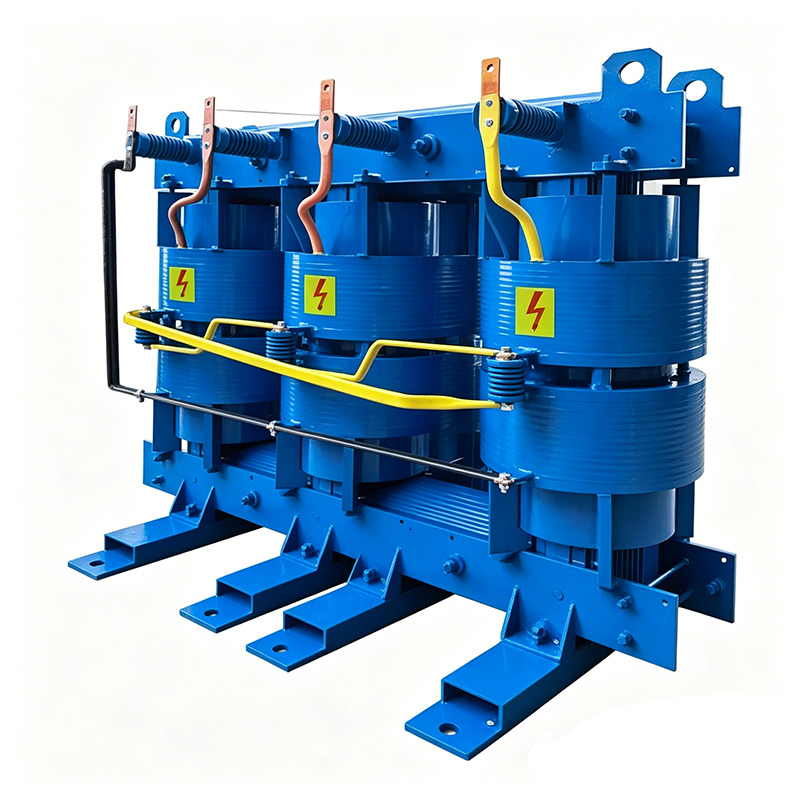

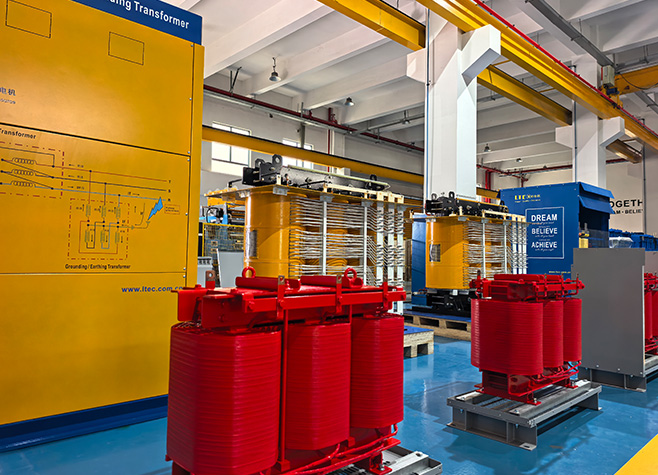

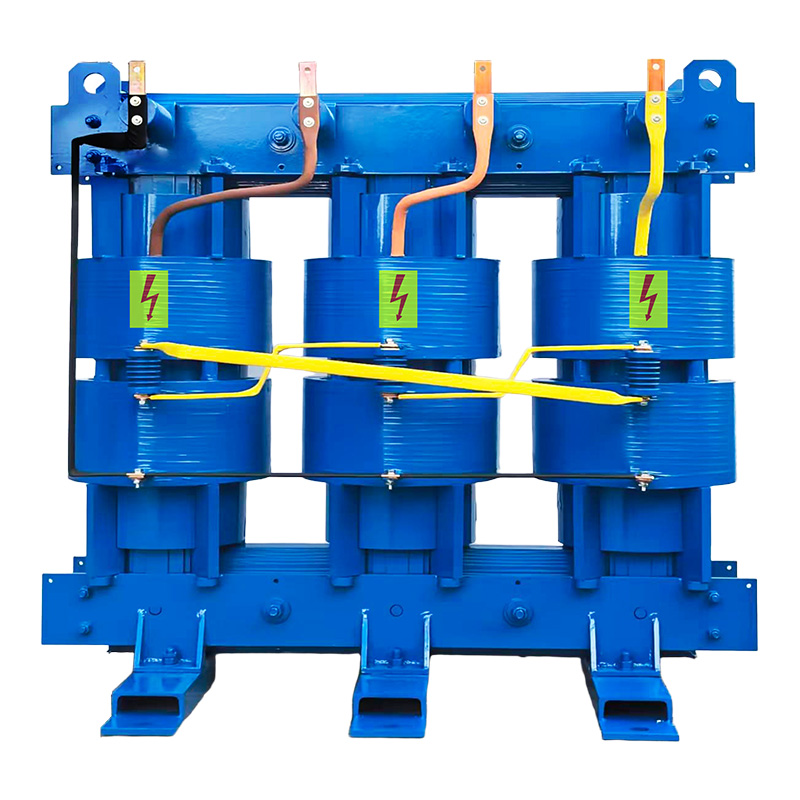

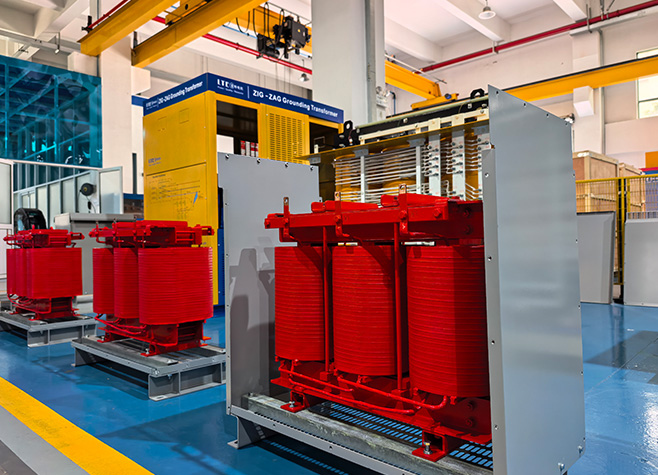

Using a single-winding zig-zag construction balancing magnetic flux internally, our neutral grounding transformer helps eliminate the need for heavy secondary windings.
√3 Size Reduction:
Shrinking your equipment size by a factor of √3, they structurally lowers your internal voltage strain.
42% Smater Footprint:
42% smaller than traditional delta-wye transformers, our type delivers you a heavy-duty fault protection solution.
Substation Cost-Savings:
Our grounding transformers provide you with robust grid grounding protection while minimizing required real estate in tight layouts.
When ground faults occur on your ungrounded systems, the dangerous electrostatic charges may risk the network. The sudden voltage spikes up to 600%–700% will lead to catastrophic motor insulation failures, shutting down your operation. To ensure your 24/7 safety, our Zig-Zag transformers:
Instant Charge Bleed-off: Before capacitive charges build up, they can safely and continuously drain them.
Voltage Stabilization: Keeps your entire network voltage stable and balanced with effective controls.
Asset Protection: Converts dangerous electrical hazards into manageable heat, shielding your capital-intensive machinery.
Optimizing both your operational budget and safety margins, our neutral grounding transformers deliver you:
Normal Operation
Keeping your operational standby losses extremely low, our transformers save your facility power and money.
Instant Trip Protection
Once a dangerous phase-to-ground fault strikes, they instantly open a low-impedance safety path.
Instantaneous Detection
Supplying a strong, immediate fault current source, the power transformers allow your protective relays to detect the issue in milliseconds.
Neutral Grounding Transformers: Technical Performance and Value
| Parameters | Details | What It Means for You |
| Zig-Zag Transformer | Single‑winding design — √3 smaller footprints | 42% lighter and smaller — cuts procurement and installation costs. |
| Integrated Auxiliary Winding | Optional secondary winding — isolated low‑voltage output from the same core | Powers local controls, fans, and meters — no separate transformer needed. |
| Custom Zero-Sequence Impedance | Custom Ohms/phase — precise ground fault current control | Fault currents — high enough to trip relays, low enough to prevent burnout. |
| Short-Time Thermal Rating | 10s or 30s short‑circuit withstand rating | Maintains structural integrity — no burnout during severe faults. |
Neutral Grounding Transformer for Renewable, Industrial, and Substation Power Grids
Built to instantly eliminate dangerous voltage spikes, our custom-engineered grounding transformers stabilize your utility substations, wind/solar farms, and heavy industrial plants.
Stop Transient Overvoltages in Wind and Solar Delta Grids
To prevent your sensitive inverters and BESS assets from ground faults, our Zig-Zag grounding transformers deliver you 24/7 protection.
Instant Protection: Delivers a stable virtual neutral to eliminate arcing spikes.
42% Space Saving: With ZN topology, your footprint can be greatly reduced by a factor of √3, perfect for tight container layouts.
Precision Tripping: Our zero-sequence impedance triggers protective relays instantly to isolate faults.

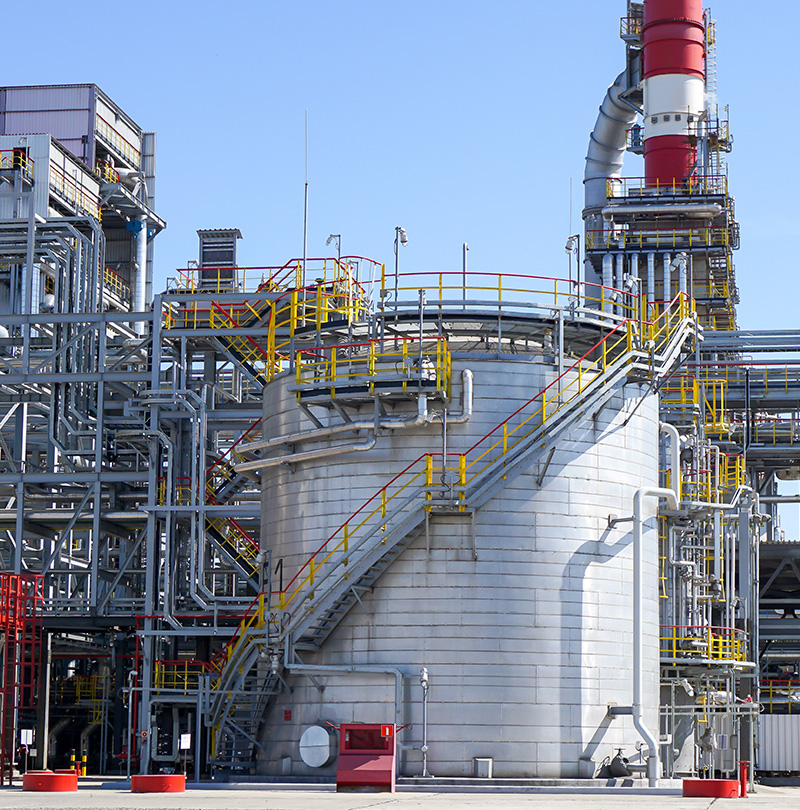

Stop Overvoltages & Downtime in Heavy Processing Plants
When ungrounded delta grids in steel, chemical, and automotive plants face ground faults, there are destructive 500%+ transient overvoltages. Our custom grounding transformers provide you with ultimate protection.
Zero-Damage Safety: The clamp system neutral helps eliminate arcing restrikes.
Rugged Engineering: Our class H (180℃) insulation option and weatherproof NEMA 3R enclosures can withstand harsh industrial environments.
Guaranteed Uptime: Safeguards your heavy motors and VFDs from simultaneous insulation breakdown.

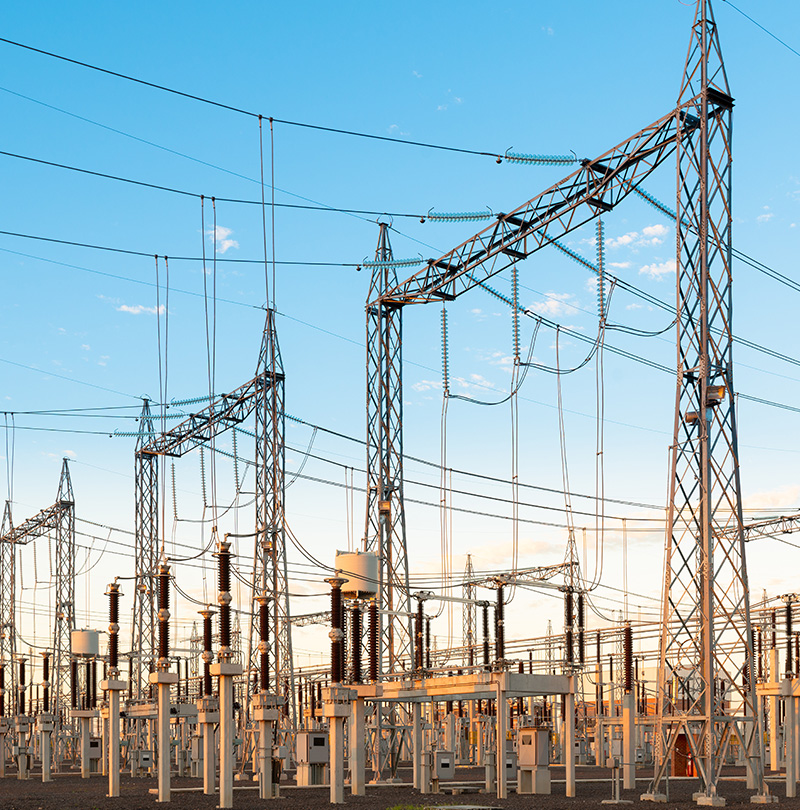

Utility-Grade Grounding Transformers for MV Substation Networks
When your ungrounded 35 kV delta utility grids face current spikes, paired with NGRs, our grounding transformers deliver you robust smart-grid protection:
Precision Fault Tripping: Instantly supplying low-impedance zero-sequence signals, they can isolate faults within 5 seconds.
Resilient Engineering: Withstands lightning strikes and line faults across extensive underground/overhead substation circuits.
Green Efficiency: Satisfying strict utility energy directives, the transformers minimize your operational standby losses.
Providing a stable neutral point for ungrounded three-phase systems, such as delta-connected networks, our neutral grounding transformer can create a controlled path for ground fault currents. So they can limit transient overvoltages, stabilize system voltages, and improve personnel safety.
The standard Delta-Wye transformer uses a two-winding design, while the Zig-Zag transformer uses a single-winding configuration that vectorially sums internal core flux. How to choose?
Zig-Zag for Compact Grounding
By shrinking physical size and weight by up to √3 times compared to Delta-Wye, the Zig-Zag type reduces internal voltage with its unique construction.
Delta-Wye for Local Control Power
The Delta-Wye design is perfect for local control power alongside grounding, which requires a stepped-down secondary voltage output.
The grounding transformer is a “short-time standby device,” so they do not run 24/7. During normal operation, they stay idle and only work for a few seconds during a fault.
So you need to size them by time and current, not continuous kVA. When you get a quote, you need to provide your system voltage level.
The maximum short-time current you need to handle. And the zero-sequence impedance is required to control the fault.
Power grids are never perfectly balanced. The minor load fluctuations always bring a small, steady “baseline current.” The rating ensures you internal copper or aluminum windings, and prevents chronic overheating.
And the continuous rating should be at least 3% of the transformer’s peak short-time fault current as an industry standard.
Yes. Paired with a grounding resistor, the neutral grounding transformer creates a safe escape path for trapped electrical charges. Dissipating the dangerous energy as heat, they completely stop destructive voltage spikes and eliminate the arcing ground fault.
